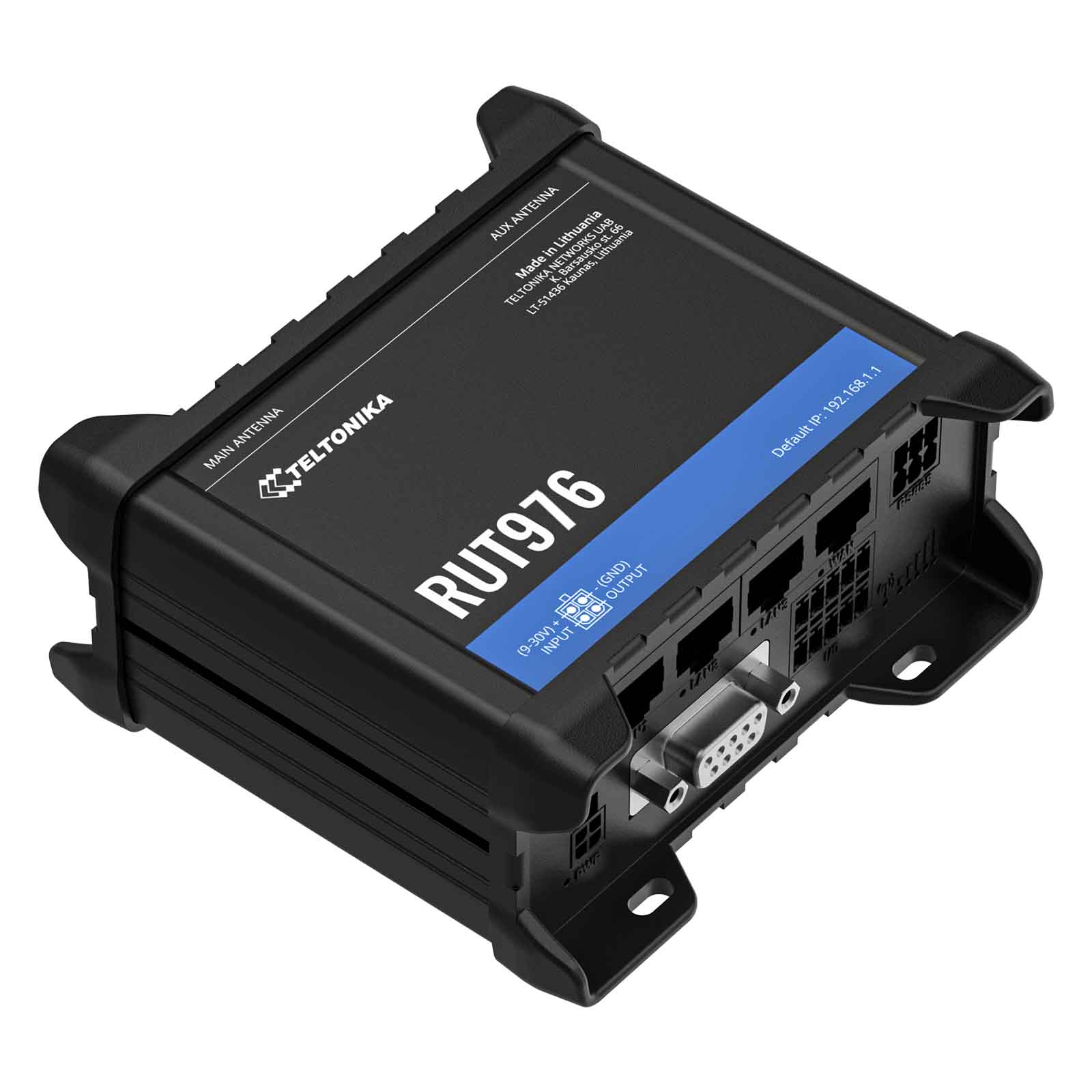

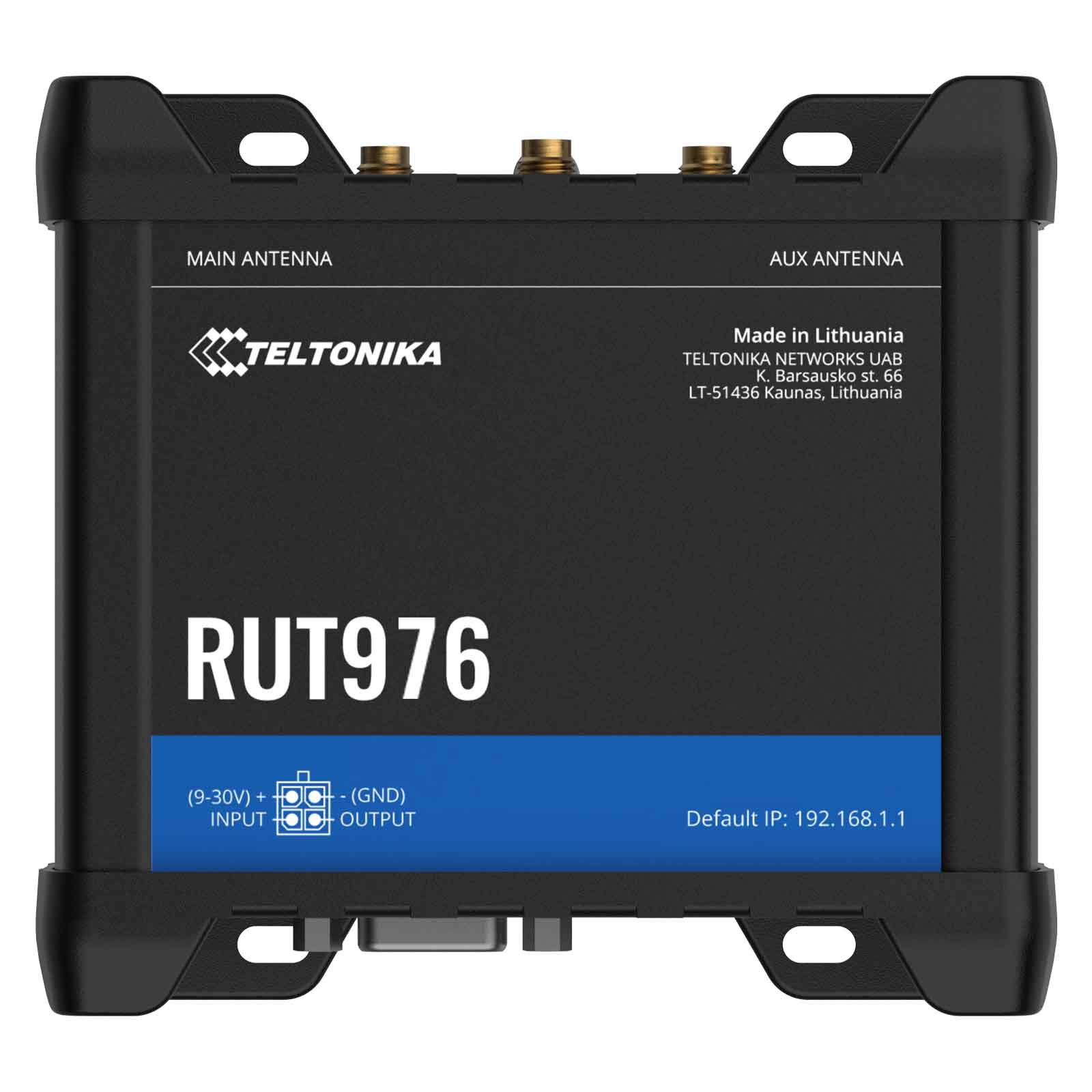

Teltonika RUT976 (RUT976000000) to kompaktowy przemysłowy router 5G Redcap wyposażony w 4x porty Fast Ethernet, WiFi, dwie karty SIM, GPS, blok złączy I/O, RS232/RS485 i oprogramowanie RutOS do tworzenia zaawansowanych rozwiązań sieciowych. RUT976 to przemysłowy router Redcap 5G obsługujący architekturę SA, tworzący zrównoważoną niszę między tradycyjnym 4G a 5G o pełnej przepustowości. Ten router 5G może bezprzewodowo obsługiwać do 100 urządzeń końcowych i charakteryzuje się niskim opóźnieniem 5G - w przystępnej cenie. W przypadku ograniczonego zasięgu 5G, RUT971 jest wstecznie kompatybilny z 4G LTE Cat 4. Posiada również dwa gniazda SIM z automatycznym przełączaniem awaryjnym, Wi-Fi, GNSS, szeroką gamę interfejsów, w tym cztery gniazda RJ45 10/100, RS232, RS485 i wiele wejść/wyjść, a także wiele innych genialnych funkcji dla profesjonalnego wdrożenia.
Teltonika RUT976 jest przeznaczony do profesjonalnych zastosowań przemysłowych dzięki dużym możliwościom dostosowania, funkcjom bezpieczeństwa, protokołom przemysłowym i kompatybilności z systemem zdalnego zarządzania (RMS) firmy Teltonika Networks.
RedCap 5G: większa elastyczność i niższe koszty
5G NR-Light, znane również jako RedCap 5G, Reduced Capability 5G. Zasadniczo RedCap 5G zajmuje bardziej elastyczną przestrzeń pomiędzy omówionymi powyżej podziałami 5G NR. RedCap 5G zmniejsza złożoność, dzięki czemu jest bardziej odpowiednią technologią dla aplikacji IoT, zachowując jednocześnie większą elastyczność 5G NR. Należy jednak zauważyć, że obsługuje ona tylko autonomiczną architekturę 5G (SA) i nie obsługuje architektury niestandardowej (NSA). W praktyce RedCap 5G oferuje niskie opóźnienia kalibru 5G przy zachowaniu wysokiej przepustowości i niskiej złożoności. A ponieważ jest niska, ceny RedCap są również niższe.
Router Teltonika RUT976 (RUT976000000), obsługuje pasma LTE:
- 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71
- 4G (LTE-TDD): B34, B38, B39, B40, B41, B42, B43, B48
Zawartość zestawu:
- Router RUT976
- Zasilacz 9 W - Teltonika PR3PUPS3 zasilacz 9V 1A
- 2x anteny 5G LTE (obrotowe, SMA męskie) - Teltonika PR1US540 antena 5G, LTE, 4.5dBi, SMA
- 2x anteny WiFi (magnetyczne, RP-SMA męskie, kabel 1,5 m) - Teltonika PR1KRF30 antena Wi-Fi, magnetyczna, 3dBi, RP-SMA, 1.5m
- 1x antena GNSS (przylepna, SMA męskie, kabel 3 m) - Teltonika PR1KSG30 antena GNSS GPS 2dBi SMA, 3m (003R-00250)
- Blok złącza I/O - Teltonika PR5MEC15 zestaw złączy 2x5pin, 2x3pin
- Blok złącza RS485 - Teltonika PR5MEC15 zestaw złączy 2x5pin, 2x3pin
- Kabel Ethernet 1,5 m
- Adapter na kartę SIM - Teltonika SIM adapter kit (PR5MEC19)
- QSG (Przewodnik szybkiego startu)
Najważniejsze cechy:
- Redcap 5G - Niskie opóźnienia, wysoka przepustowość, przystępne ceny
- Wsteczna kompatybilność z 4G LTE Cat 4
- Bezprzewodowy punkt dostępowy z funkcją hotspotu
- WAN failover - Automatyczne przełączanie na dostępne połączenie zapasowe
- Interfejsy szeregowe (RS232 i RS485), MQTT, BACnet, OPC UA, wejścia/wyjścia, Ethernet i inne
- Automatyczne przełączanie awaryjne, zapasowa sieć WAN i inne scenariusze przełączania
- Bezprzewodowy punkt dostępowy z funkcją Hotspot
- GNSS - NTRIP, usługi lokalizacyjne i synchronizacja czasu
- Dual SIM - znacznie obniża koszty roamingu
- 4x porty Fast Ethernet z funkcjonalnością VLAN
- System zdalnego zarządzania Teltonika - RMS
Mobile
- Mobile module: 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
- 3GPP Release: Release 17 RedCap
- SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD: Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list: Operator black/white list (by country or separate operators)
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- SIM idle protection service: When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
- SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID: SSID stealth mode and access control based on MAC address
- Wi-Fi users: Up to 100 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter: Allowlist, blocklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
Ethernet
- WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Network
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
Security
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
- SSL certificate generation: Let's encrypt support
VPN
- OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
BACNET
- Supported modes: Router
- Supported connection types: RS485, TCP
OPC UA
- Supported modes: Client, Server
- Supported connection types: TCP
MODBUS
- Supported modes: Server, Client
- Supported connection types: RTU (RS232, RS485), TCP, USB
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis
- Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
- Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes: TCP Master, DNP3 Outstation
- Supported connection types: RS232, RS485, TCP, USB
DLMS
- DLMS Support: DLMS - standard protocol for utility meter data exchange
- Supported modes: Client
- Supported connection types: RS232, RS485, TCP
API
- Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA: Firmware update from server, automatic notification
- SSH: SSH (v1, v2)
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- Email: Receive email message status alerts of various services
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC: Management API over HTTP/HTTPS
- RMS: Teltonika Remote Management System (RMS)
IoT Platforms
- ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
- CPU: Mediatek, 580 MHz, MIPS 24KEc
- RAM: 128 MB, DDR2
- FLASH storage: 16 MB, NOR Flash
Firmware / Configuration
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA: Update FW
- RMS: Update FW/configuration for multiple devices at once
- Keep settings: Update FW without losing current configuration
- Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
- GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
- Package Manager: The Package Manager is a service used to install additional software on the device
Location Tracking
- GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA: NMEA 0183
- NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
- Server software: Supported server software TAVL, RMS
- Geofencing: Configurable multiple geofence zones
Serial
- RS232: DB9 connector, RS232 (with RTS, CTS flow control)
- RS485: RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
- Serial functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
USB
- Data rate: USB 2.0
- Applications: Samba share, USB-to-serial
- External devices: Possibility to connect external HDD, flash drive, printer, USB-serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
- Input: 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
- Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
Power
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
- PoE-out input voltage range: 44 – 57 VDC
- PoE (passive): Passive PoE over Port LAN1. "Mode A/B" style. Not compatible with 802.3af/at/bt.Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
- Power consumption: Idle: < 3 W, Max: < 7 W
Physical Interfaces

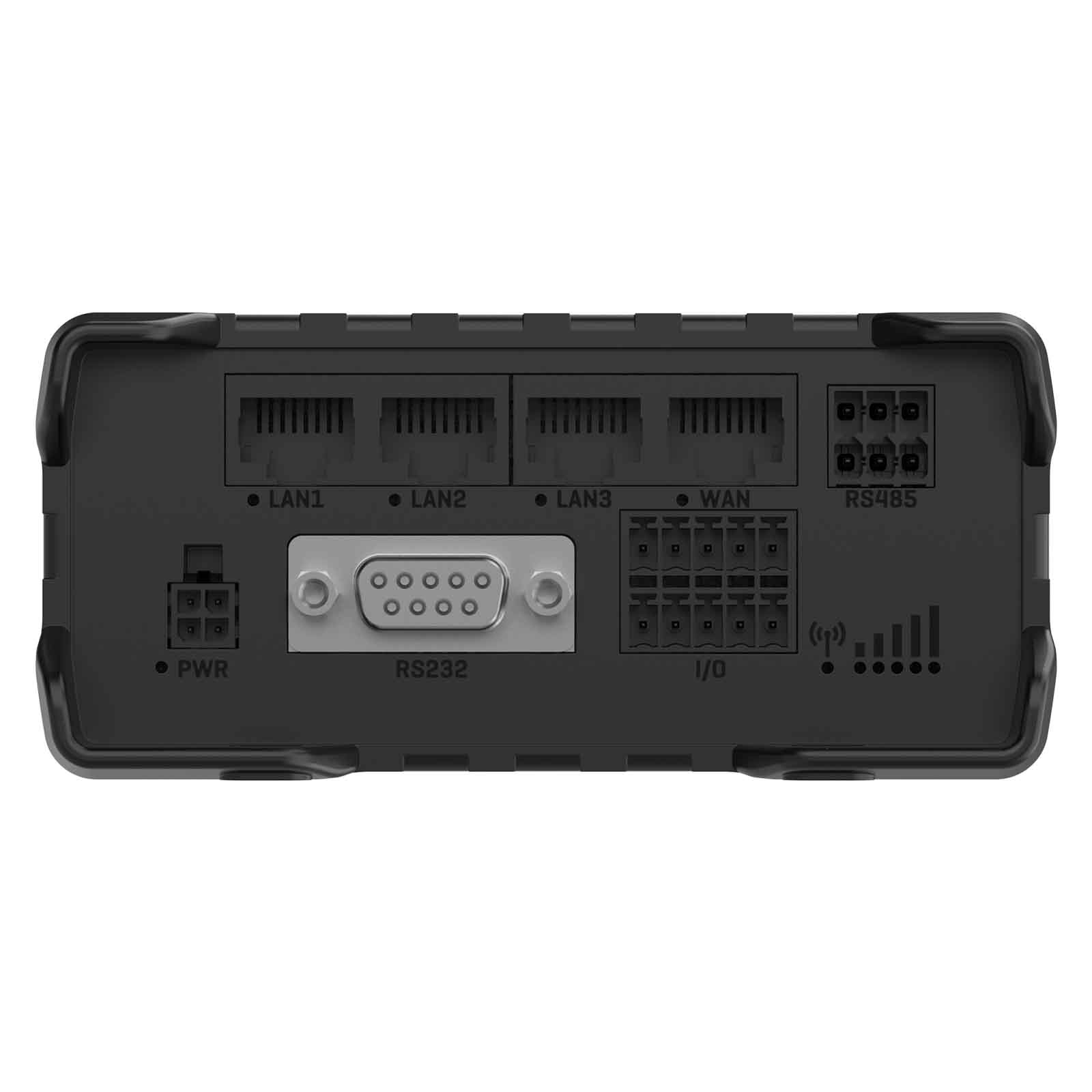

- Ethernet: 4 x RJ45 ports, 10/100 Mbps
- I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
- Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
- SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
- Power: 1 x 4-pin power connector
- Input/output: 1 x 10-pin industrial socket for inputs/outputs

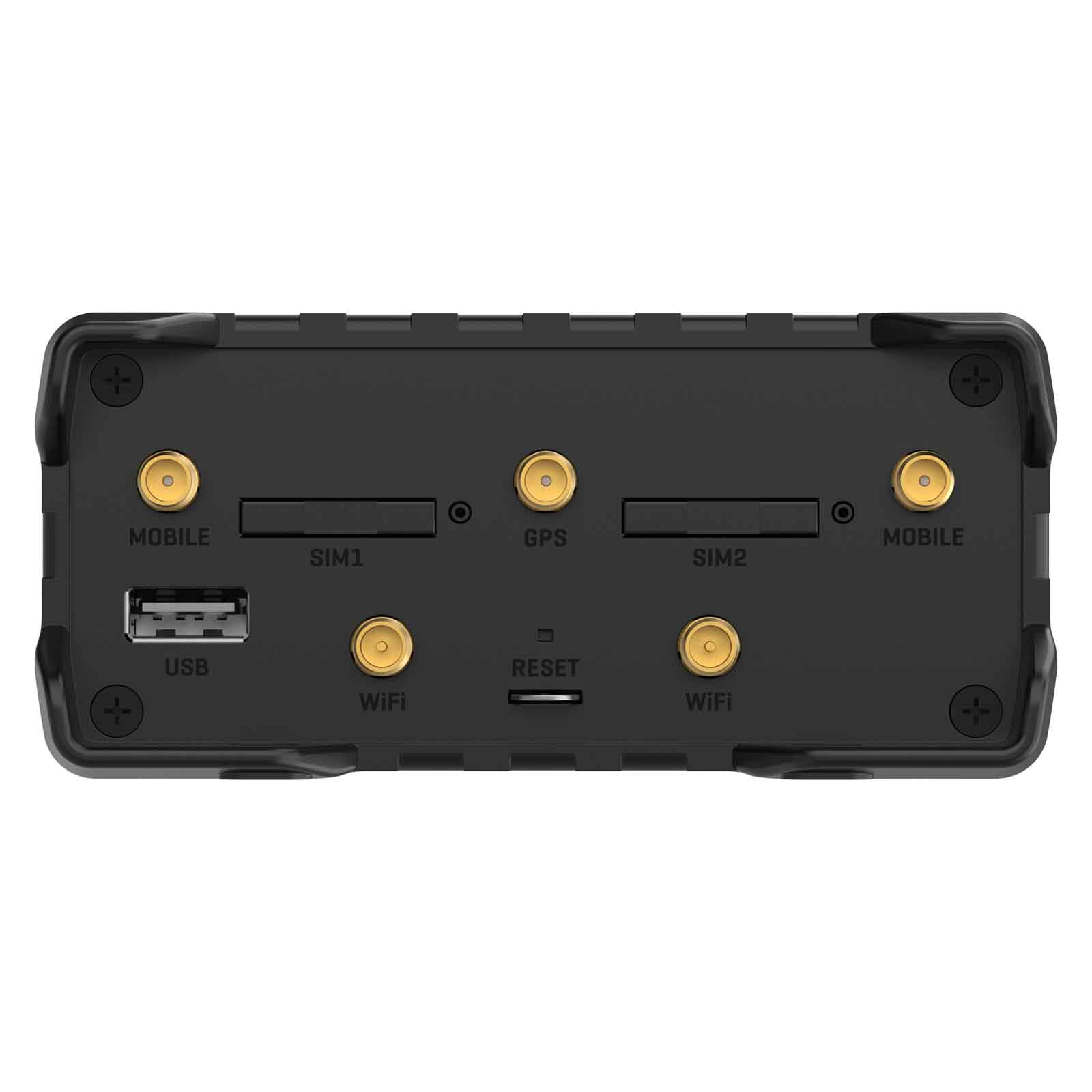

- Antennas: 2 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
- USB: 1 x USB A port for external devices
- RS232: 1 x DB9 socket
- RS485: 1 x 6-pin industrial socket
- Reset: Reboot/User default reset/Factory reset button
Physical Specification
- Casing material: Aluminum housing, plastic panels
- Dimensions (W x H x D): 110 x 50 x 100 mm
- Weight: 295 g
- Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
