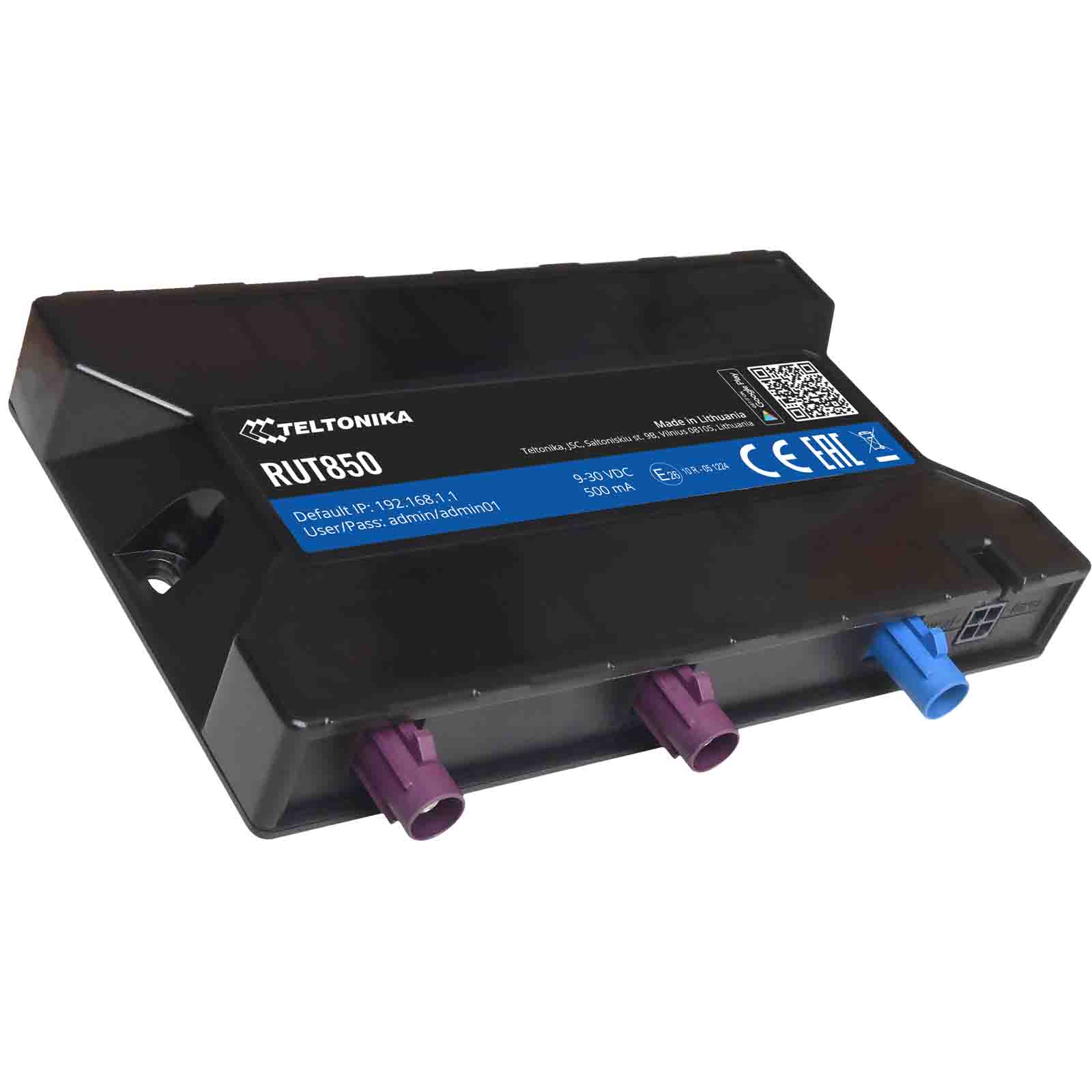

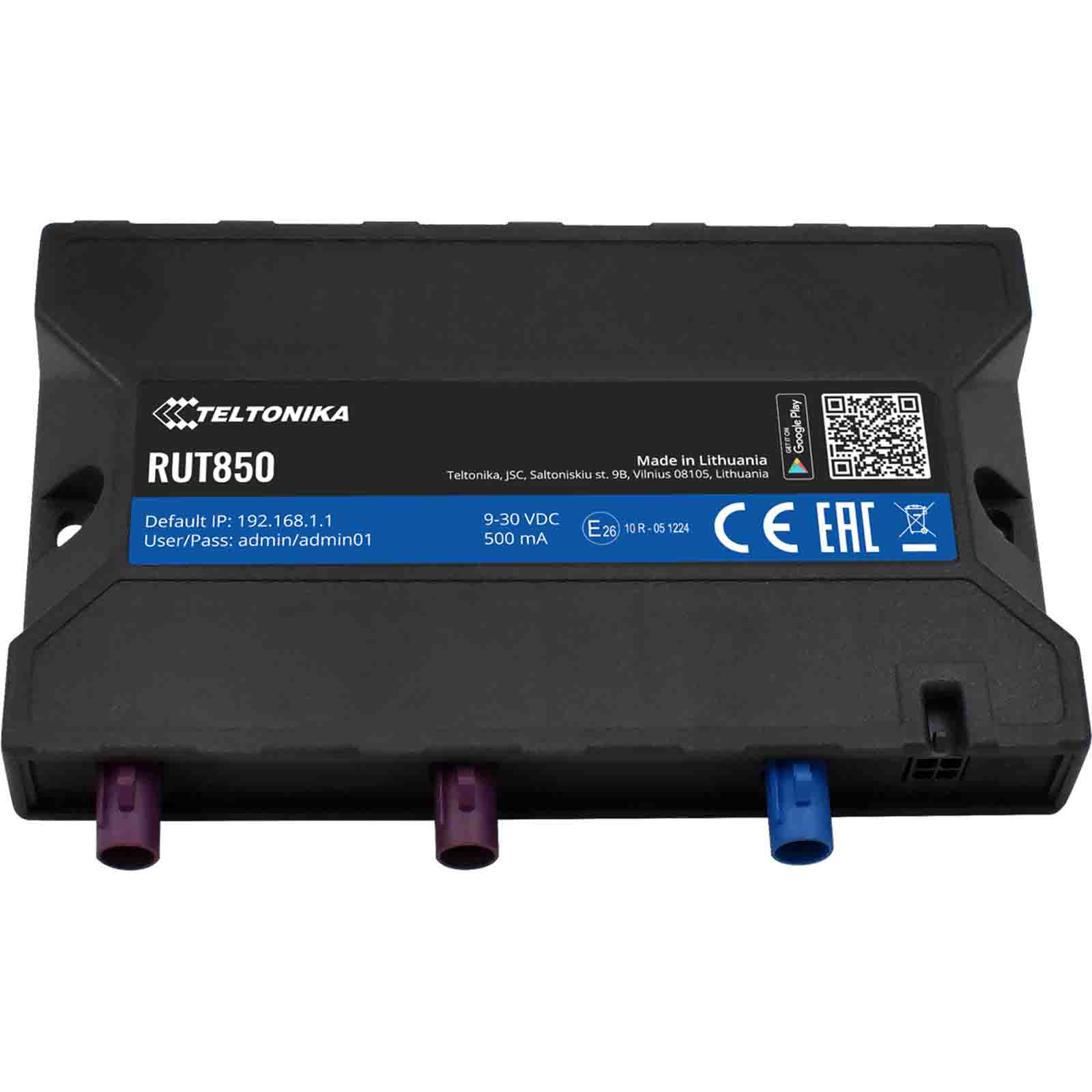

Teltonika RUT850 (RUT850311210) to kompaktowy, bezprzewodowy, samochodowy router 4G LTE WiFi o smukłej obudowie. Zaprojektowany został z myślą o zastosowaniu w transporcie.
Zapewnia rozwiązanie gwarantujące niezawodną łączność, która może obsługiwać wszystkie wymagania drogowe: hotspot WiFi w pojeździe, dostęp do scentralizowanych systemów, telematykę floty, bilety elektroniczne i mobilne czy punkt sprzedaży. Router samochodowy obsługuje szybki LTE CAT4, który zapewnia prędkość do 150 Mb/s dla potrzeb rekreacyjnych jak i biznesowych.
Certyfikowany przez e-znak, ultracienki RUT850 wyposażony jest w wykrywanie zapłonu (tryb uśpienia), ochronę przeciwprzepięciową i złącza samochodowe FAKRA. Router jest dostarczany z oprogramowaniem RutOS i funkcjami zabezpieczeń jak Firewall oraz Hotspot, kontrolą SMS, obsługą RMS i niestandardowym protokółem śledzenia GNSS, który jest kompatybilny z głównymi platformami śledzenia globalnego AVL.
Zintegrowany odbiornik GPS zapewnia, że zawsze wiesz, gdzie znajdują się pojazdy. Jest to idealny router do samochodów, kamperów, autokarów i pojazdów użytkowych, umożliwiający niezawodne i bezpieczne połączenie internetowe dla smartfonów, tabletów, notebooków lub dowolnych typów klientów WLAN. Zasilacz w zestawie.
Najważniejsze cechy:
- Obsługa LTE kat. 4 do 150 Mb/s
- Pozycjonowanie GNSS z funkcją geofencing
- Bezprzewodowy punkt dostępowy z funkcją Hotspot
- Wykrywanie zapłonu i tryb uśpienia
- Odporne na wibracje złącza Fakra
- System zdalnego zarządzania Teltonika - RMS
|
MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps. |
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS (optional), SMS to EMAIL(optional), SMS to HTTP (optional), SMS to SMS (optional), scheduled SMS, SMS autoreply, SMPP (optional) |
|
Black/White list
|
Black/White list |
|
Multiple PDN (optional)
|
Possibility to use different PDNs for multiple network access and services |
|
Band management
|
Band lock, Used band status display |
|
WIRELESS
|
|
|
Wireless mode
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
|
WiFi
|
WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter |
|
WiFi security
|
WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation |
|
SSID
|
SSID stealth mode and access control based on MAC address |
|
WiFi users
|
up to 80 simultaneous connections |
|
Hotspot
|
Captive portal (Hotspot), internal/external Radius server , built in customizable landing page |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2) |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT (optional) SMPP, MQTT, VoIP passthrough support |
|
Connection monitoring
|
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forward, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relayd |
|
QoS
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
Mobile and WiFi WAN options, each of which can be used as backup, using automatic Failover |
|
Load balancing (optional)
|
Balance your internet traffic over multiple WAN connections |
|
NetSnapper (optional)
|
Mobile connection management, data compression VPN client (not available in standard FW) |
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
WiFi security
|
WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation |
|
Mobile quota control
|
Set up custom data limits for the SIM card |
|
WEB filter
|
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and server can be running simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec (optional)
|
IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE (optional)
|
GRE tunnel |
|
PPTP, L2TP (optional)
|
Client/Server services can run simultaneously |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from sever, automatic notification. |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
|
MQTT (optional)
|
MQTT Broker, MQTT publisher |
|
SNMP (optional)
|
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Atheros Hornet, MIPS 74Kc, 550MHz |
|
RAM
|
64MB, DDR2 |
|
FLASH memory
|
16MB SPI Flash |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
GPL package with built environment provided |
|
LOCATION TRACKING
|
|
|
GNSS
|
GPS, GLONASS, BeiDou, Galileo and QZSS |
|
Coordinates
|
GNSS coordinates via WebUI, SMS, TAVL, RMS |
|
NMEA
|
NMEA 0183 |
|
Server software
|
supported server software TAVL, RMS |
|
Mobile Network Geolocation
|
Location without using GPS, get approximate location based on mobile tower on RMS |
|
Startup
|
Hot start <2.5s, Warm start <26s, Cold start <35s |
|
Tracking
|
55 simultaneous satellites channels |
|
Sensitivity
|
-157 dBM |
|
Accuracy
|
< 1.5m |
|
Geofencing
|
Configurable multiple geofence zones |
|
POWER
|
|
|
Connector
|
4 pin DC power socket |
|
Input voltage range
|
9 – 30 VDC (4 pin industrial socket), reverse polarity protection, overvoltage protection up to 60VDC, surge protection >66VDC 10us max. |
|
Power consumption
|
< 5W |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
|
Status LEDs
|

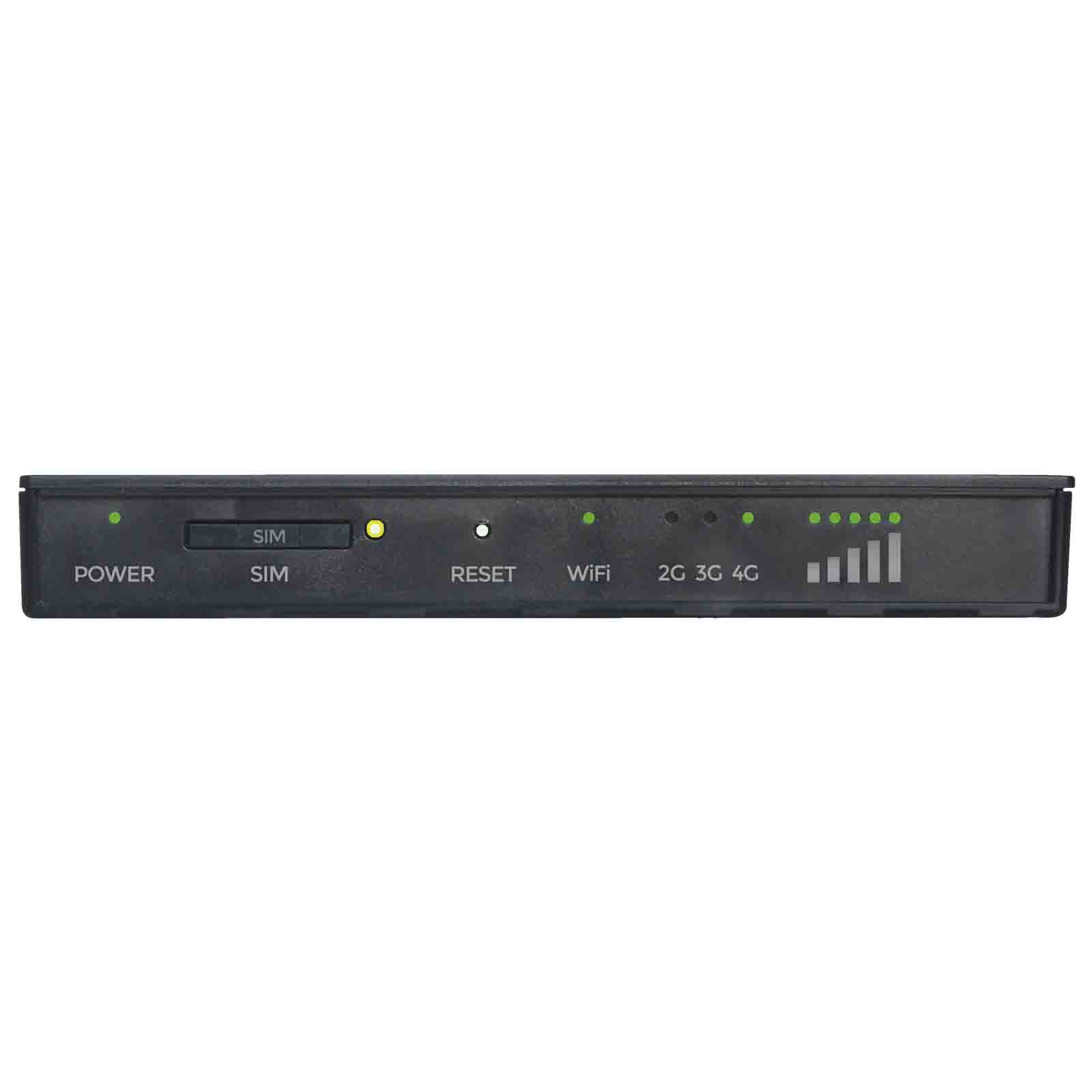

3 x connection type status LEDs, 1 x WiFi status LED, 5 x connection strength LEDs, 1 x Power LED |
|
SIM
|
1 x SIM slots (Mini SIM – 2FF, 2st form factor), 1.8V/3V, external SIM holder |
|
Power
|
4 pin DC connector |
|
Antennas
|

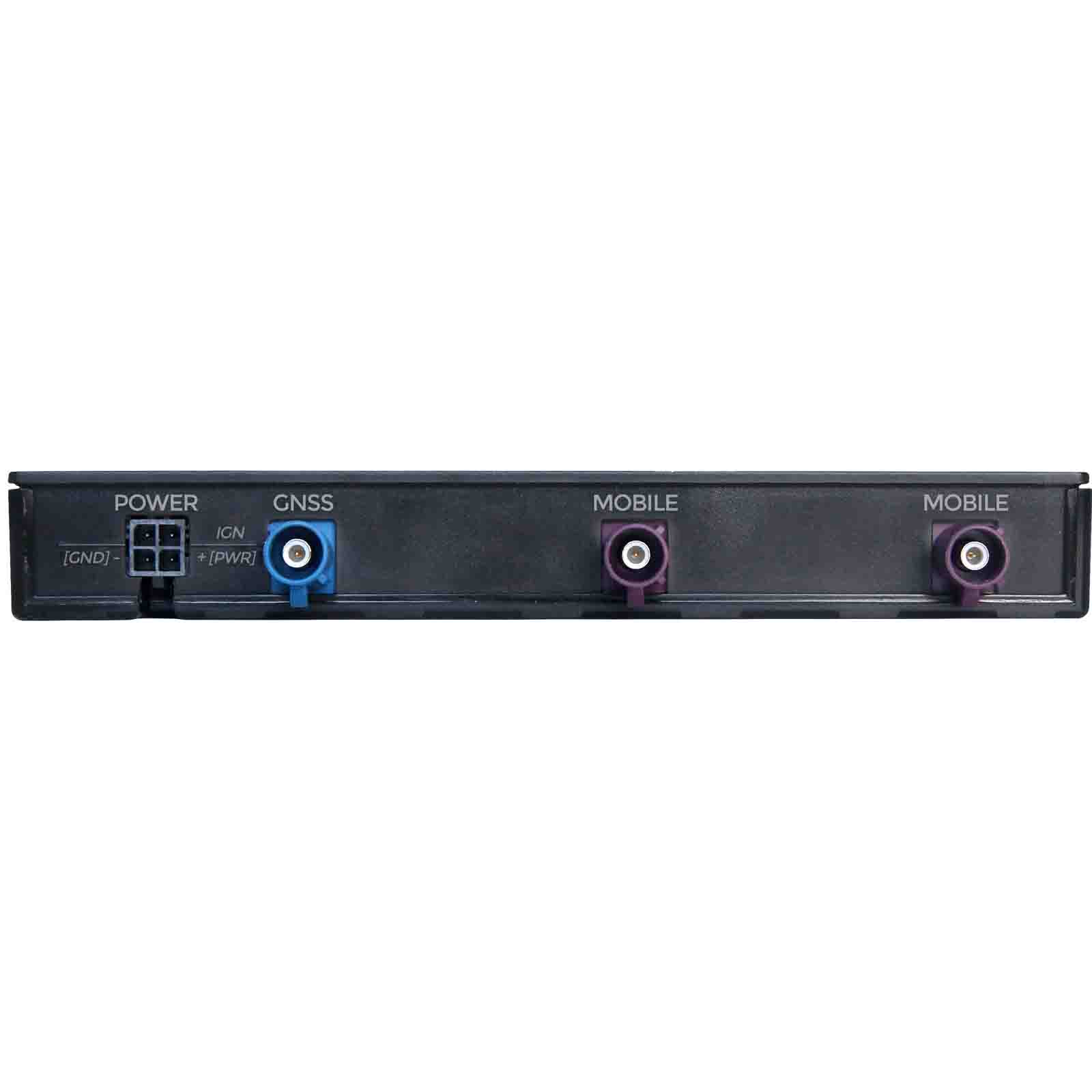

2 x FAKRA connectors for LTE, 1x FAKRA connector for GNSS |
|
Reset
|
Reset/restore to default button |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Plastic housing, plastic panels |
|
Dimensions
|
131 mm x 79 mm x 18 mm (H x W x D) |
|
Weight
|
115 g |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10% to 90% non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
MTBF
|
290000 h |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE/RED, EAC, RoHS, WEEE |
|
Operator
|
AT&T (planned), Verizon (planned) |
|
Vehicle
|
ECE R10 (E-mark) |
|
EMI IMMUNITY
|
|
|
Standards
|
Draft EN 303 446-1 V1.1.0 |
|
ESD
|
EN61000-4-2:2009 |
|
RS
|
EN 61000-4-3:2006, A1:2008 and A2:2010 |
|
EFT
|
EN 61000-4-4:2004 |
|
CS
|
EN 61000-4-6:2009 |
|
RF
|
|
|
Standards
|
EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0 |
|
SAFETY
|
|
|
Standards
|
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 EN 50665:2017, EN 62311:2008 |
|
