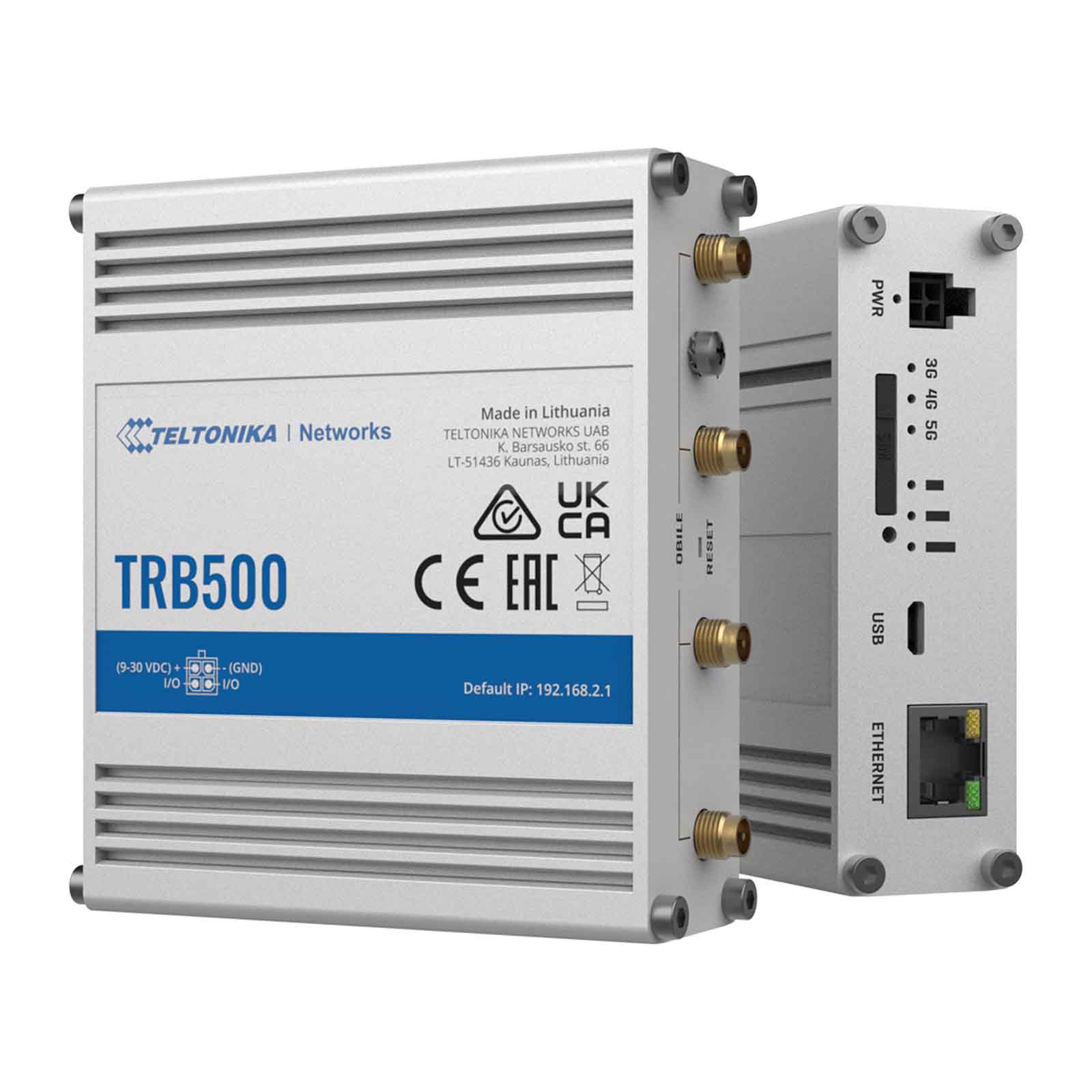

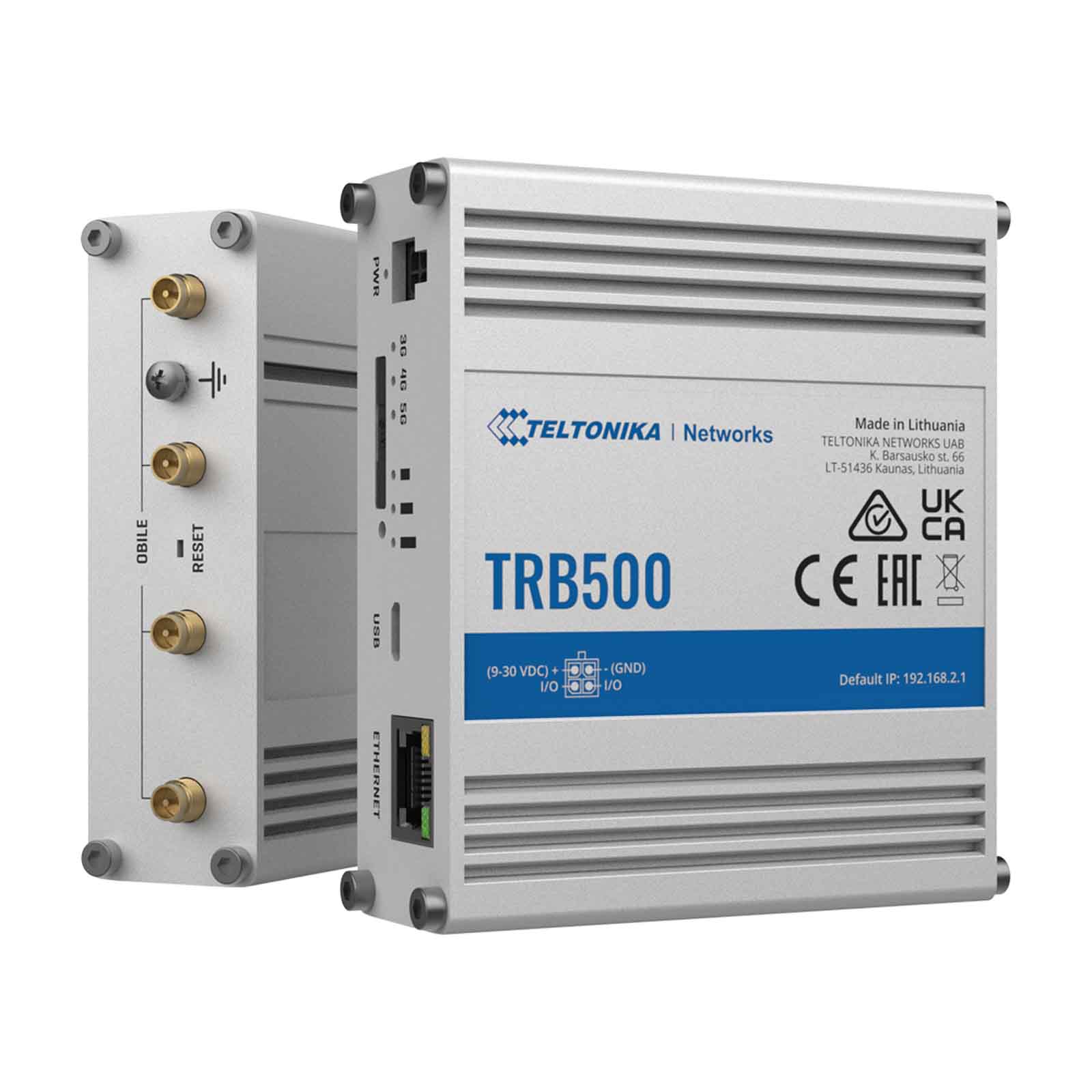

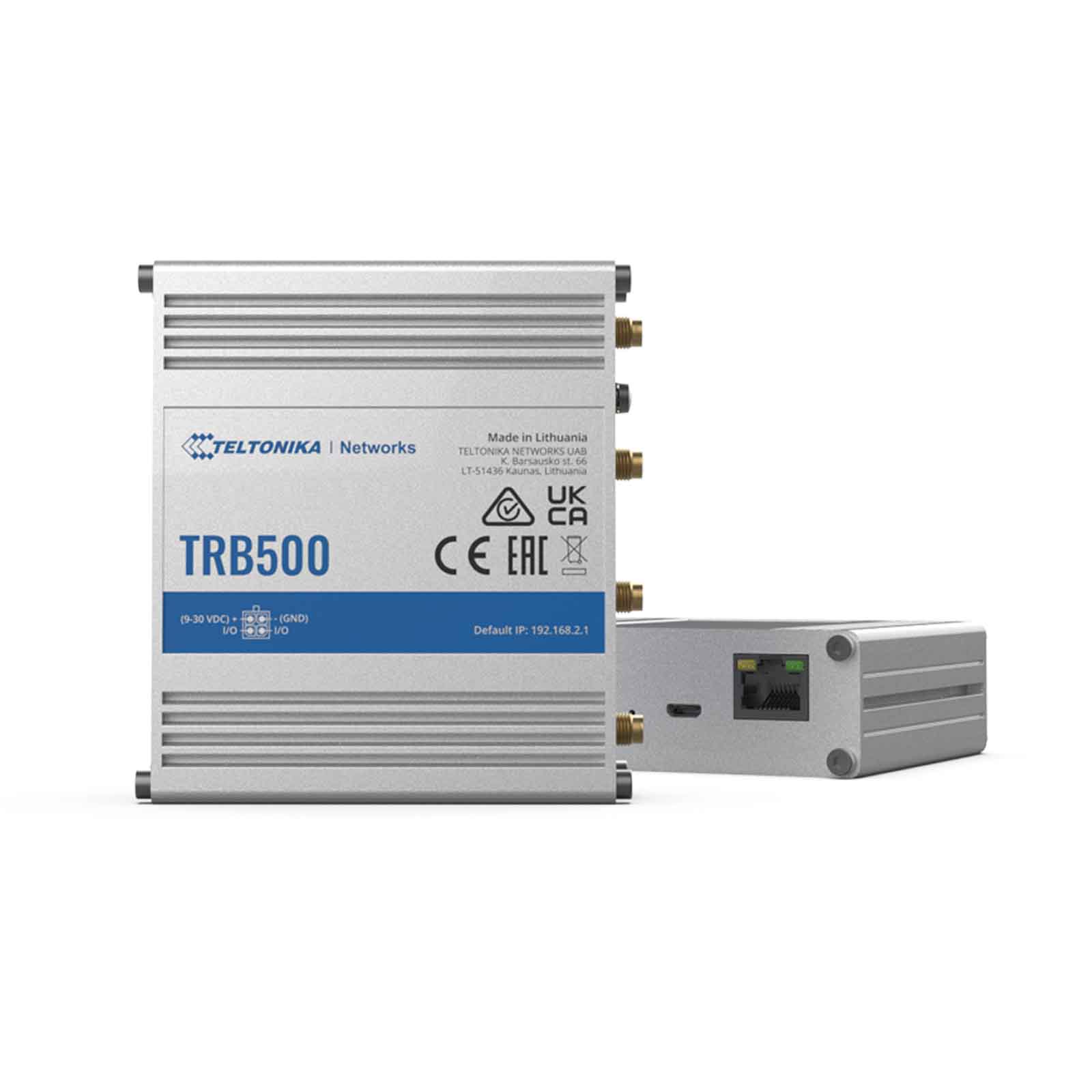

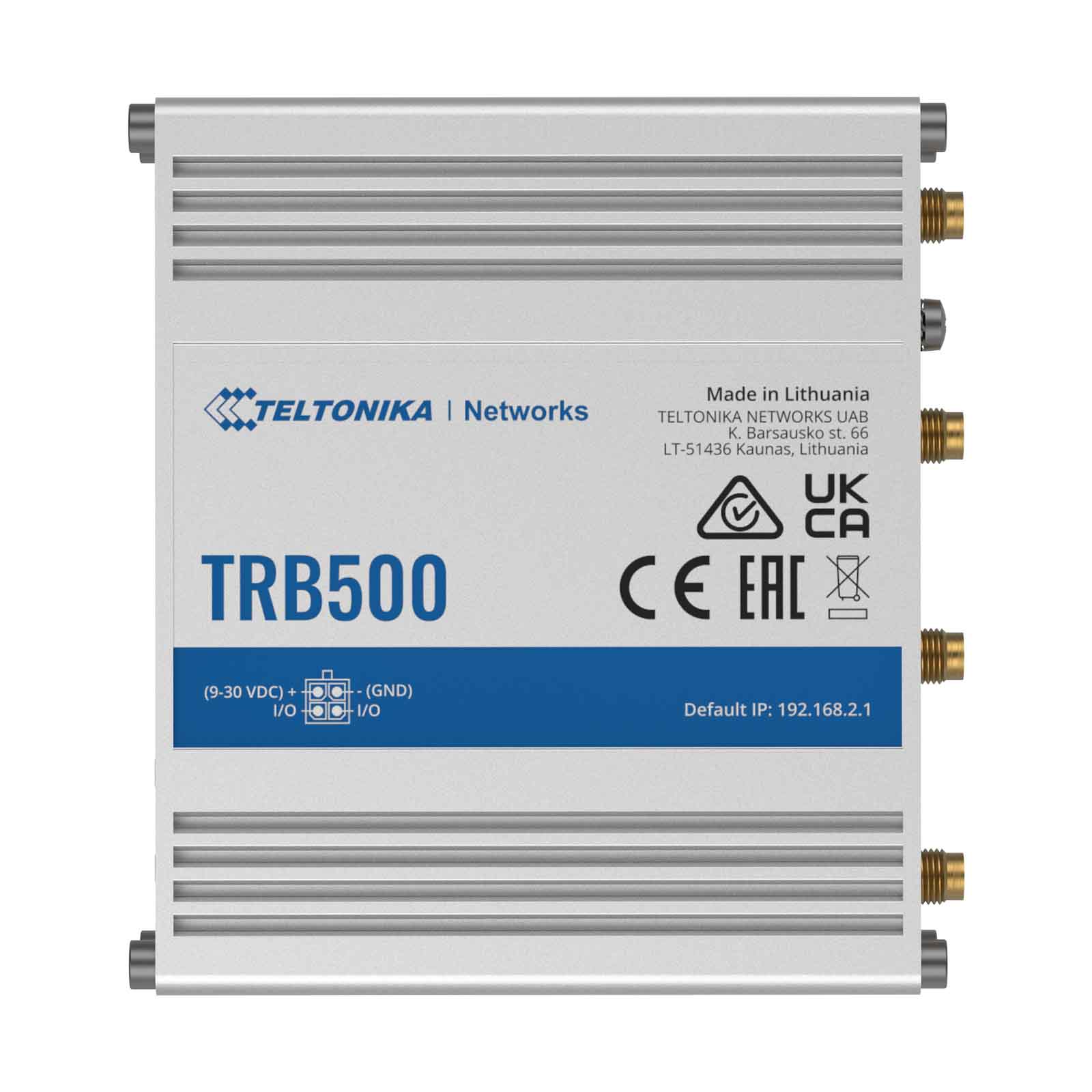

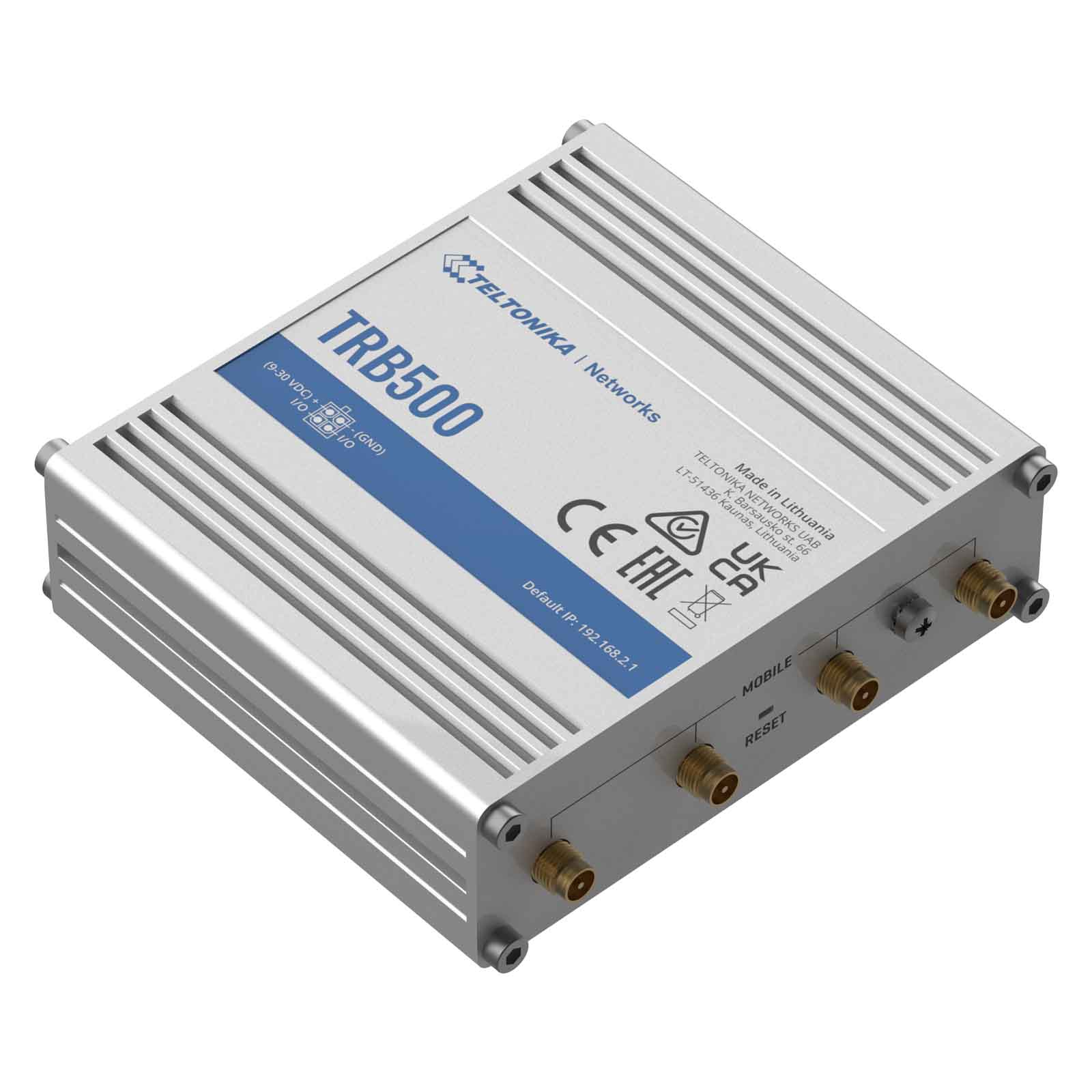

Teltonika TRB500 to przemysłowa, kompaktowa brama sieciowa 5G. Wyposażona jest w port Gigabit Ethernet, Micro-USB, wydajny procesor i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych.
Brama TRB500 to kompaktowa i energooszczędna brama przemysłowa z interfejsem Gigabit Ethernet i dwoma konfigurowalnymi wejściami/wyjściami, umożliwiająca dostosowanie na wysokim poziomie i realizację wielu scenariuszy. Urządzenie zapewnia prędkości sieci 5G z bardzo niskimi opóźnieniami dla infrastruktur o znaczeniu krytycznym i wysoką przepustowość danych, zapewnioną przez 4 anteny zewnętrzne, które umożliwiają korzystanie z 4x4 MIMO.
Teltonika TRB500 jest wyposażona w system operacyjny RutOS, który zapewnia zaawansowane funkcje bezpieczeństwa i zgodność z systemem zdalnego zarządzania Teltoniki (RMS) w celu zoptymalizowania możliwości zdalnego zarządzania i monitorowania dużych flot urządzeń. Zawartość zestawu:
- bramka TRB500
- zasilacz 9 W
- 4x anteny (obrotowe, SMA męskie)
- kabel micro-USB (0,8 m)
- kabel Ethernet
- adapter do karty SIM
- instrukcja szybkiego startu
- pudełko do pakowania
Najważniejsze cechy:
- 5G - Niezwykle wysokie prędkości komórkowe do 1 Gb/s
- SA i NSA - Obsługuje obie architektury w celu wykorzystania infrastruktury 5G
- Jednocyfrowe opóźnienie dla aplikacji o znaczeniu krytycznym
- 1x port gigabit Ethernet
- 2x konfigurowalne wejścia / wyjścia do zdalnego monitorowania i sterowania na 4-stykowym złączu zasilania
- 1x wirtualny interfejs sieciowy przez micro USB
- 1x gniazdo SIM (Mini SIM – 2FF), 1,8 V/3 V
- Procesor Cortex A7, ARM 1.5 GHz
- Jedna z najmniejszych bramek 5G dostępnych na rynku
- Wstecznie kompatybilny z technologiami sieci 4G (LTE CAT 20) i 3G
- Kompatybilny z systemem zdalnego zarządzania Teltonika RMS
- Oparty na systemie operacyjnym Linux pozwalającym na dużą personalizację oprogramowania
MOBILE
|
Mobile module
|
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
SMS/Call
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White list
|
Operator black/white list |
Band management
|
Band lock, Used band status display |
APN
|
Auto APN |
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough
|
Gateway assigns its mobile WAN IP address to another device on LAN |
ETHERNET
|
LAN
|
1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
NETWORK
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall
|
Port forwards, traffic rules, custom rules |
DHCP
|
Static and dynamic IP allocation |
DDNS
|
Supported >25 service providers, others can be configured manually |
SSHFS
|
Possibility to mount remote file system via SSH protocol |
SECURITY
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
Firewall
|
Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN
|
Port and tag-based VLAN separation |
Mobile quota control
|
Set up custom data limits for SIM card |
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
GRE
|
GRE tunnel |
IPsec
|
IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
PPTP, L2TP
|
Client/Server services can run simultaneously, L2TPv3 support |
SSTP
|
SSTP client instance support |
STUNNEL
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN
|
Method of building scalable IPsec VPNs |
WireGuard
|
WireGuard VPN client and server support |
ZeroTier
|
ZeroTier VPN |
MODBUS
|
MODBUS TCP SLAVE
|
ID filtering
|
Respond to one ID in range [1;255] or any |
Allow remote access
|
Allow access through WAN |
Custom registers
|
MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MQTT GATEWAY
|
Gateway
|
Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
DNP3
|
Supported modes
|
TCP Master, DNP3 Outstation |
DATA TO SERVER
|
Protocol
|
HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
FOTA
|
Firmware update from sever, automatic notification |
SSH
|
SSH (v1, v2) |
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call
|
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT
|
MQTT Broker, MQTT publisher |
SNMP
|
SNMP (v1, v2, v3), SNMP trap |
JSON-RPC
|
Management API over HTTP/HTTPS |
MODBUS
|
MODBUS TCP status/control |
RMS
|
Teltonika Remote Management System (RMS) |
IoT PLATFORMS
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub
|
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS
|
CPU
|
Single core ARM Cortex A7, 1.5 GHz |
RAM
|
256 MB (128 MB available for userspace) |
FLASH storage
|
512 MB (200 MB available for userspace) |
FIRMWARE / CONFIGURATION
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA
|
Update FW |
RMS
|
Update FW/configuration for multiple devices |
Keep settings
|
Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
Supported languages
|
Busybox shell, Lua, C, C++ |
Development tools
|
SDK package with build environment provided |
INPUT/OUTPUT
|
Configurable I/O
|
2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 40 V detected as logic high. Open collector output, max output 30 V, 300 mA |
Output control
|
HTTP POST/GET, Schedule |
Events
|
SMS, EMAIL |
I/O juggler
|
Allows setting certain I/O conditions to initiate event |
POWER
|
Connector
|
4-pin industrial DC power socket |
Input voltage range
|
9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max |
Power consumption
|
Idle: |

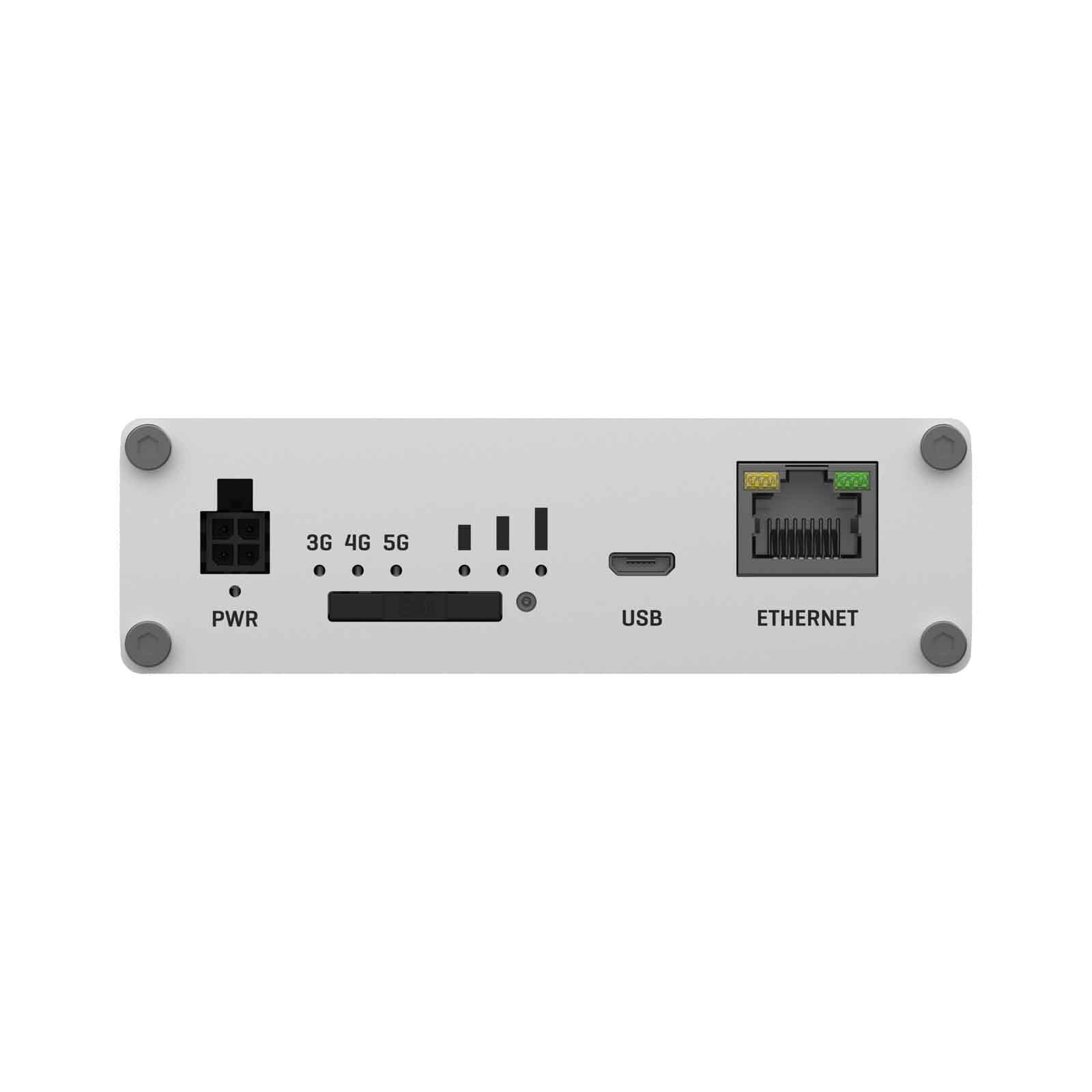

PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
|
Ethernet
|
1 x RJ45 port, 10/100/1000 Mbps |
I/Os
|
2 x Configurable I/O pins on 4-pin power connector |
USB
|
1 x Virtual network interface via micro USB |
Status LEDs
|
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power
|
1 x 4-pin DC power connector |

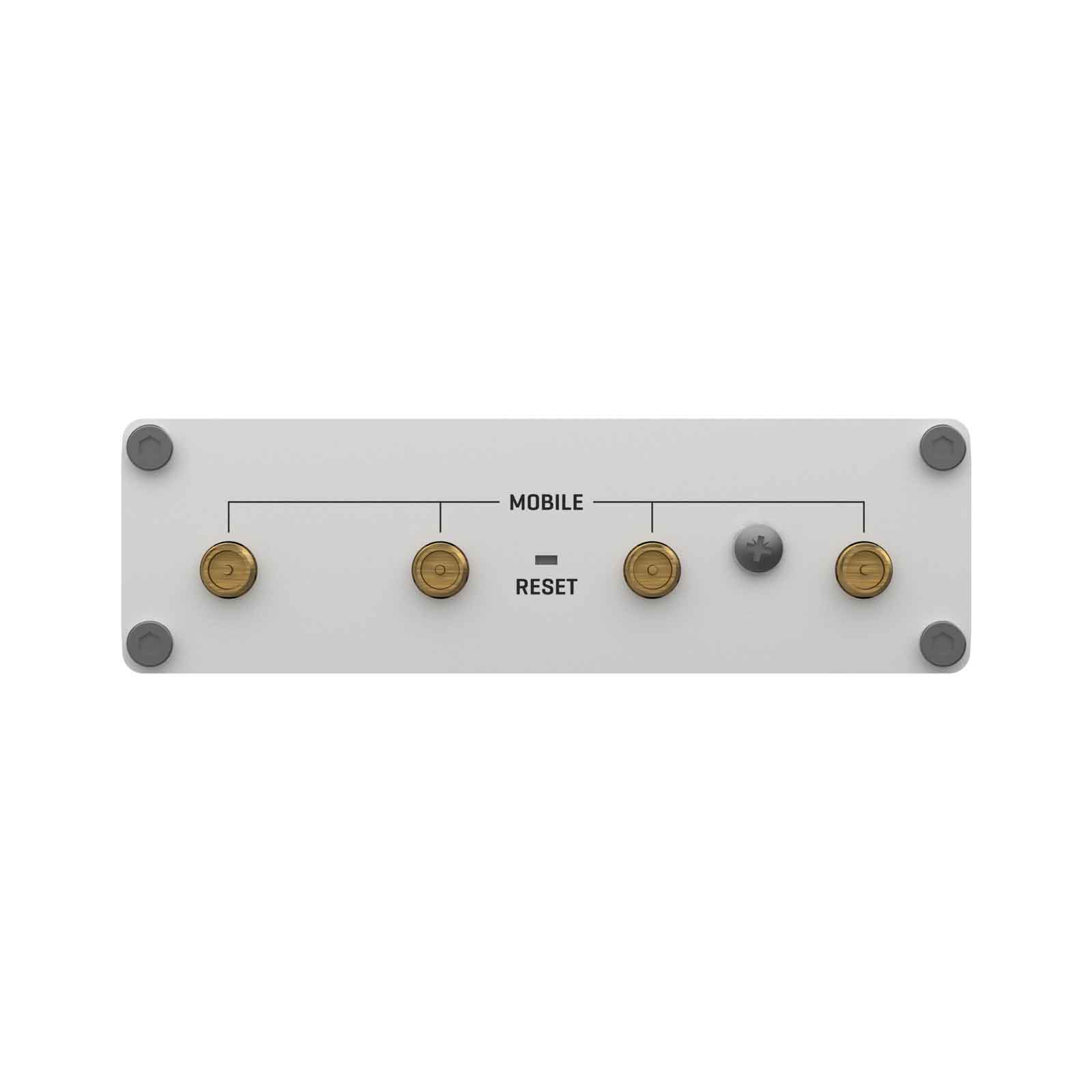

Anntena
|
4 x SMA for Mobile |
Reset
|
Reboot/User default reset/Factory reset button |
Grounding
|
Grounding screw terminal |
PHYSICAL SPECIFICATIONS
|
Casing material
|
Aluminum housing |
Dimensions (W x H x D)
|
100 x 30 x 93,4 mm |
Weight
|
241g |
Mounting options
|
DIN rail, Flat surface |
OPERATING ENVIRONMENT
|
Operating temperature
|
-40 °C to 75 °C |
Operating humidity
|
10 % to 90 % non-condensing |
Ingress Protection Rating
|
IP30 |
|
