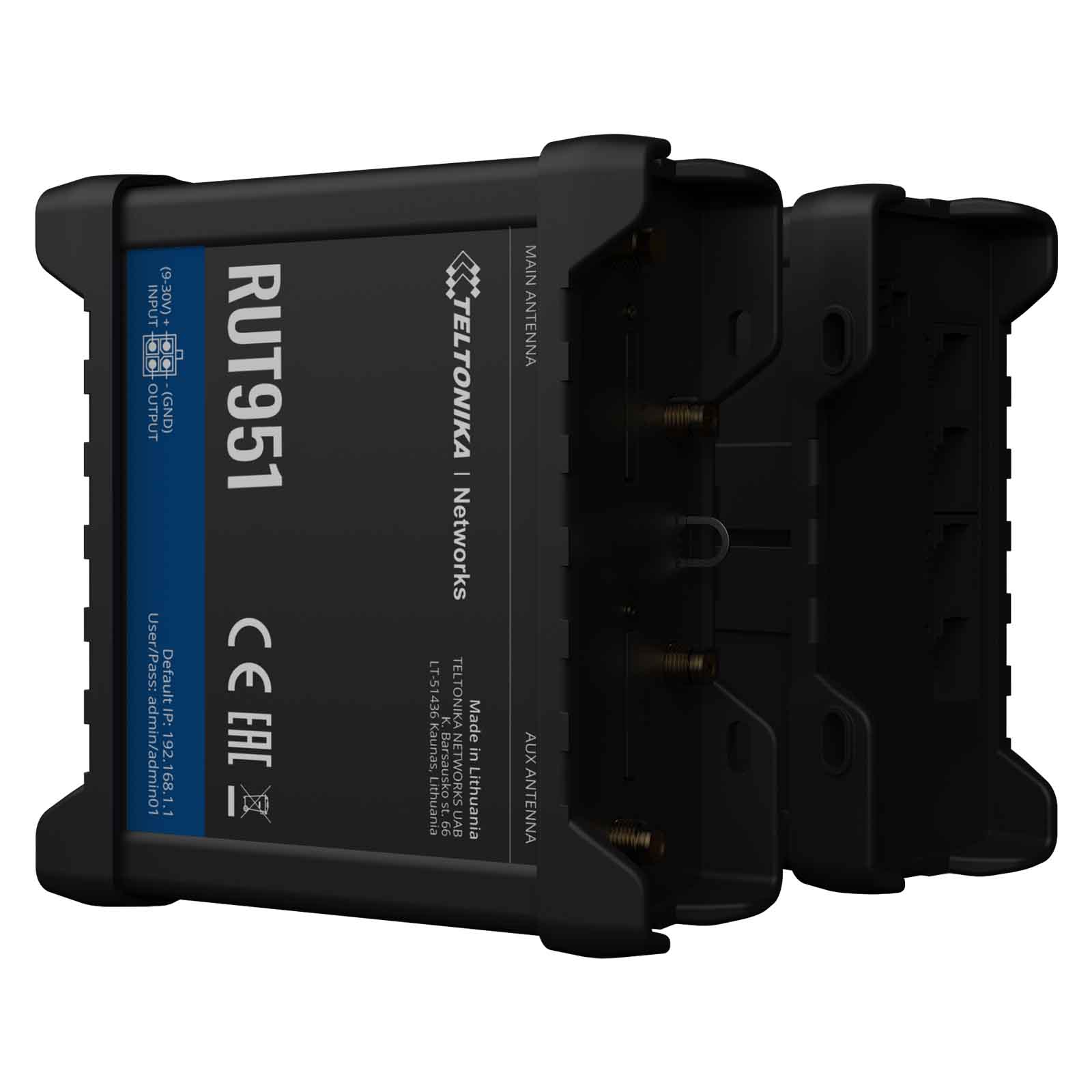

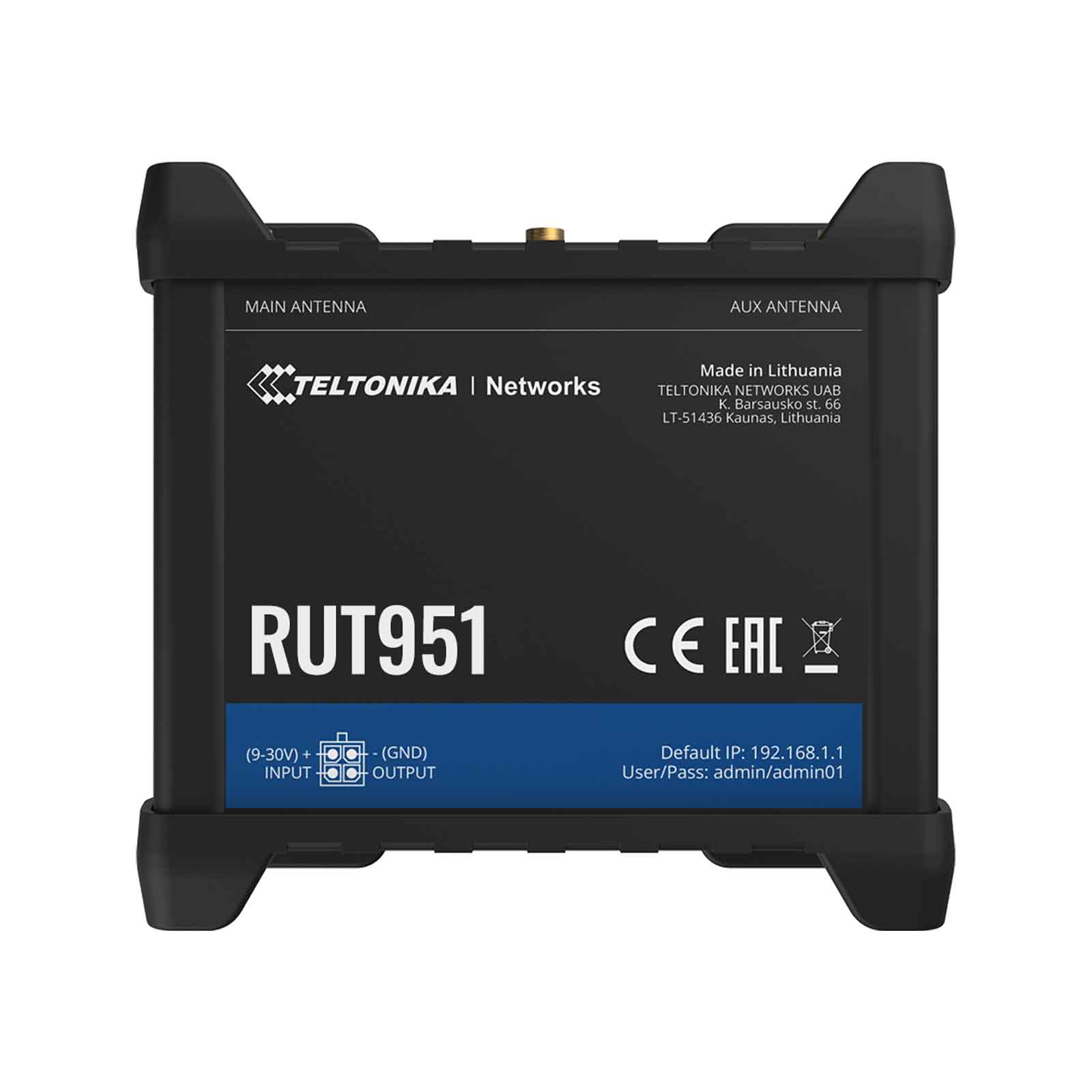

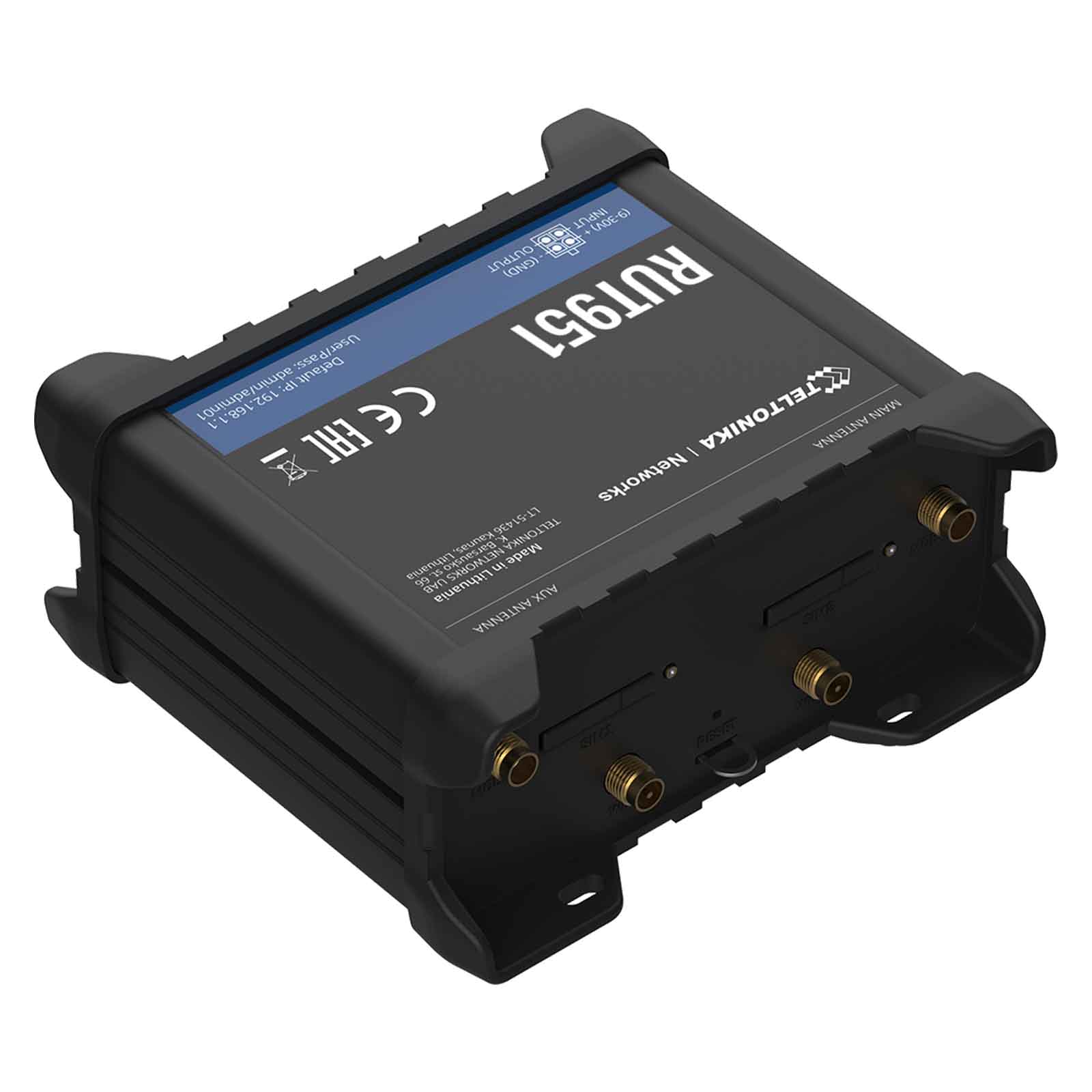

    Teltonika RUT951 router LTE Dual SIM (RUT951000000)
    1 052,30 zł
    855,53 zł netto

    Dostępność: dostępne
    Producent: Teltonika
    szt:



    Najtańsza dostawa: (pokaż wszystkie)
  • DHL (przedpłata) - 18,00 zł

  • Teltonika RUT951 to bezprzewodowy router 4G LTE dual SIM z technologią 802.11n oraz zaimplementowanym serwerem VPN. Wbudowany moduł LTE oraz dwa gniazda SIM umożliwiają jeszcze bardziej wygodne, stabilne połączenie z internetem w dowolnym miejscu z prędkością do 150 Mb/s. Router wyposażony jest w cztery porty Ethernet, dwa zewnętrzne gniazda na kartę SIM, cyfrowe wejście / wyjście, a także wskaźniki LED, pokazujące status i siłę sygnału. Cztery zewnętrzne złącza antenowe SMA umożliwiają podłączenie pożądanych anten. Urządzenie posiada również podstawowe oprogramowanie RutOS i funkcje bezpieczeństwa, takie jak OpenVPN, IPsec, Firewall, Auto Failover, kontrola SMS oraz wsparcie RMS.

    Nowatorska funkcja SMS management umożliwia m.in. restartowanie urządzenia, łączenie i  sprawdzanie statusu połączenia. Funkcja failover nie tylko zapewnia bezawaryjność połączenia w przypadku gdy jedna z kart SIM zostanie rozłączona. Umożliwia również obniżenie kosztów poprzez ustawienie opcji failover raoming, która przełącza połączenie na drugą kartę SIM w sytuacji gdy pierwsza z kart rejestruje się w sieci roamingowej i odwrotnie.

    Przełączanie pomiędzy SIM1 i SIM2 można również uzależniać od wielkości pobieranych cyklicznie danych (przez dzień, tydzień lub miesiąc), a także od poziomu zasięgu. Oprócz szerokopasmowego mobilnego dostępu do internetu RUT950 posiada fizyczny port WAN ethernet, dla podłączenia stacjonarnego łącza szerokopasmowego. Rut950 obsługuje między innymi połączenia PPPoE, statyczne IP, zmienne IP (klient DHCP), GRE Tunnel, PPTP oraz L2TP.

    Konfigurację routera, przywracanie i zapisywanie jego ustawień można łatwo przeprowadzić poprzez interfejs WWW, wykorzystując do tego przeglądarkę internetową. W RUT950 wprowadzono również możliwość zarządzania routerem za pomocą SMS. Wysyłając odpowiedni SMS na kartę SIM dokonać restartu urządzenia. Funkcja ta jest niezwykle przydatna w sytuacji gdy użytkownik nie ma możliwości zainicjowania połączenia VPN oraz nie ma możliwości zrestartowania routera. Router pozwala także na odbieranie i wysyłanie do jednego lub wielu użytkowników GSM wiadomości tekstowych SMS.

    Teltonika RUT951 wyposażona jest w procesor MediaTek (MIPS 24Kc, 580MHz) oraz 128 MB pamięci RAM.

    Zawartość zestawu:
    • Router RUT951
    • Zasilacz 9 W
    • 2x anteny LTE (obrotowe, męskie SMA)
    • 2x anteny WiFi (obrotowe, męskie RP-SMA)
    • Kabel Ethernet (1,5 m)
    • Zestaw adaptera SIM
    • QSG (Przewodnik szybkiego startu)
    • Pudełko do pakowania
    Najważniejsze cechy:
    • Obsługa LTE kat. 4 do 150 Mb/s
    • Bezprzewodowy punkt dostępowy z funkcją Hotspot
    • WAN failover - Automatyczne przełączenie na dostępne połączenie zapasowe
    • Dual SIM - znacznie obniża koszty roamingu
    • 4x porty Ethernet z funkcjonalnością VLAN
    • System zdalnego zarządzania Teltonika - RMS
    MOBILE
    Mobile module
    4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
    SIM switch
    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
    Status
    Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
    Black/White list
    Operator black/white list
    Band management
    Band lock, Used band status display
    APN
    Auto APN
    Bridge
    Direct connection (bridge) between mobile ISP and device on LAN
    Passthrough
    Router assigns its mobile WAN IP address to another device on LAN
    Multiple PDN (optional)
    Possibility to use different PDNs for multiple network access and services (not available in standard FW)
    WIRELESS
    Wireless mode
    IEEE 802.11b/g/n, Access Point (AP), Station (STA)
    WiFi security
    WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
    SSID
    SSID stealth mode and access control based on MAC address
    WiFi users
    Up to 100 simultaneous connections
    Wireless Hotspot
    Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
    ETHERNET
    WAN
    1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
    LAN
    3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
    NETWORK
    Routing
    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
    Network protocols
    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
    VoIP passthrough support
    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
    Connection monitoring
    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
    Firewall
    Port forward, traffic rules, custom rules
    DHCP
    Static and dynamic IP allocation, DHCP Relay, Relayd
    QoS / Smart Queue Management (SQM)
    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
    DDNS
    Supported >25 service providers, others can be configured manually
    Network backup
    VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
    Load balancing
    Balance your internet traffic over multiple WAN connections
    SSHFS (optional)
    Possibility to mount remote file system via SSH protocol (not available in standard FW)
    SECURITY
    Authentication
    Pre-shared key, digital certificates, X.509 certificates
    Firewall
    Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
    Attack prevention
    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    VLAN
    Port and tag based VLAN separation
    Mobile quota control
    Set up custom data limits for both SIM cards
    WEB filter
    Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
    Access control
    Flexible access control of TCP, UDP, ICMP packets, MAC address filter
    Secure Boot
    Cryptographic integrity check of the each system boot process (available on device with special order code RUT950U072C0).
    VPN
    OpenVPN
    Multiple clients and server can be running simultaneously, 12 encryption methods
    OpenVPN Encryption
    DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    IPsec
    IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
    GRE
    GRE tunnel
    PPTP, L2TP
    Client/Server services can run simultaneously
    Stunnel
    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
    DMVPN
    Method of building scalable IPsec VPNs
    SSTP
    SSTP client instance support
    ZeroTier
    ZeroTier VPN
    WireGuard
    WireGuard VPN client and server support
    MODBUS
    MODBUS TCP SLAVE
    ID range
    Respond to one ID in range [1;255] or any
    Allow Remote Access
    Allow access through WAN
    Custom registers
    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
    MODBUS TCP MASTER
    Supported functions
    01, 02, 03, 04, 05, 06, 15, 16
    Supported data formats
    8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
    MODBUS DATA TO SERVER
    Protocol
    HTTP(S), MQTT, Azure MQTT
    MQTT GATEWAY
    MQTT gateway
    Allows sending commands and receiving data from MODBUS Master through MQTT broker
    DNP3
    Supported modes
    TCP Master, DNP3 Outstation
    MONITORING & MANAGEMENT
    WEB UI
    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
    FOTA
    Firmware update from server, automatic notification
    SSH
    SSH (v1, v2)
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET
    Call
    Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
    TR-069
    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    MQTT
    MQTT Broker, MQTT publisher
    SNMP
    SNMP (v1, v2, v3), SNMP trap
    JSON-RPC
    Management API over HTTP/HTTPS
    MODBUS
    MODBUS TCP status/control
    RMS
    Teltonika Remote Management System (RMS)
    IoT PLATFORMS
    Cloud of Things
    Allows monitoring of: Device data, Mobile data, Network info, Availability
    ThingWorx
    Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
    Cumulocity
    Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
    Azure IoT Hub
    Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
    SYSTEM CHARACTERISTICS
    CPU
    Mediatek MIPS 24Kc 580 MHz
    RAM
    128 MB, DDR2
    FLASH storage
    16 MB, SPI Flash
    FIRMWARE / CONFIGURATION
    WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
    FOTA
    Update FW/configuration from server
    RMS
    Update FW/configuration for multiple devices
    Keep settings
    Update FW without losing current configuration
    FIRMWARE CUSTOMIZATION
    Operating system
    RutOS (OpenWrt based Linux OS)
    Supported languages
    Busybox shell, Lua, C, C++
    Development tools
    SDK package with build environment provided
    INPUT/OUTPUT
    Input
    1 x Digital input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
    Output
    1 x Digital open collector output, max output 30 V, 300 mA
    Events
    SMS, EMAIL, RMS
    POWER
    Connector
    4 pin industrial DC power socket
    Input voltage range
    9 – 30 VDC, reverse polarity protection; surge protection >31VDC 10us max
    PoE (passive)
    Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
    Power consumption
    < 2 W idle, < 7 W Max
    PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

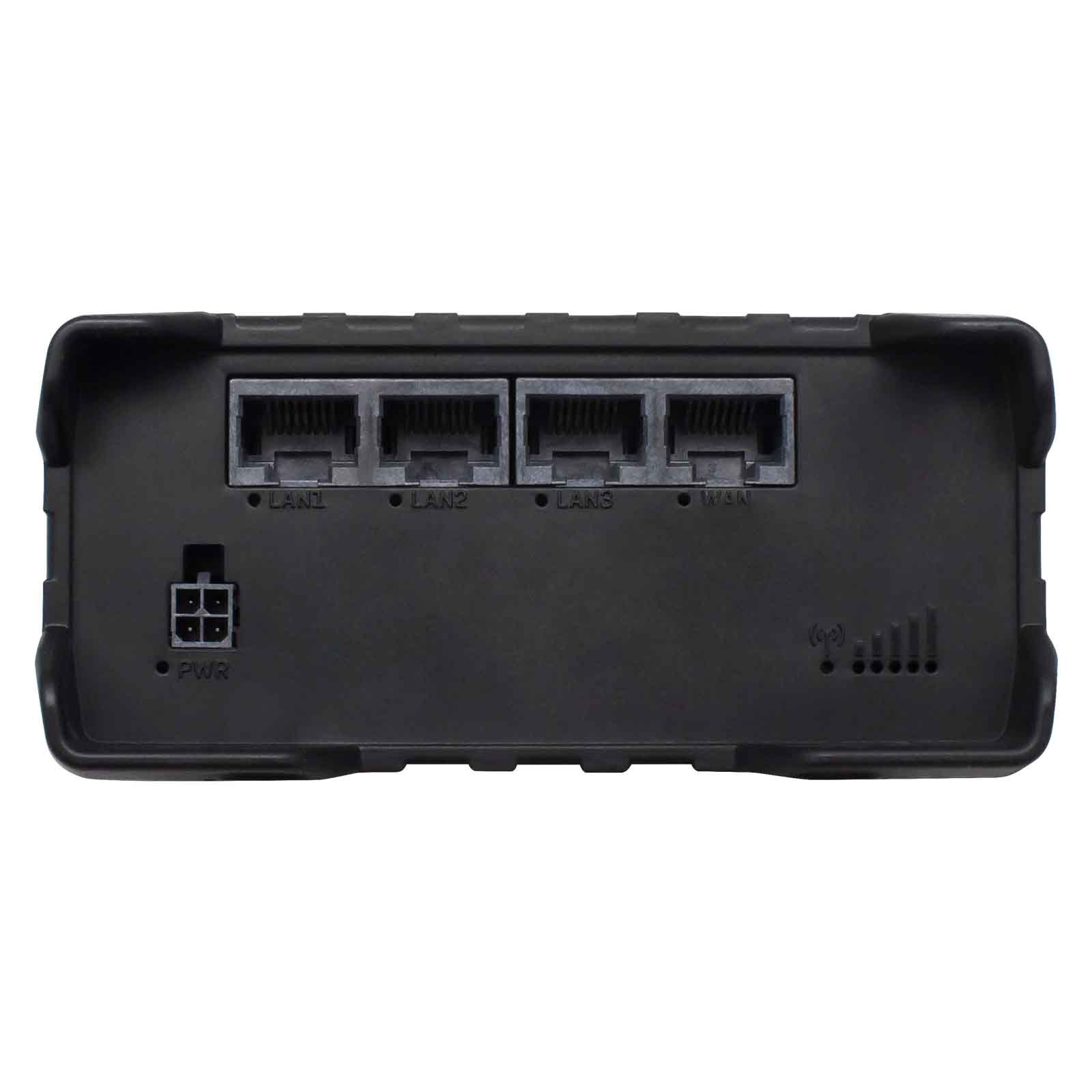

    Ethernet
    4 x RJ45 ports, 10/100 Mbps
    I/O’s
    1 x Digital Input, 1 x Digital Output on 4 pin power connector (available from HW revision 1600)
    Status LEDs
    1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
    SIM
    2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
    Power
    1 x 4 pin power connector

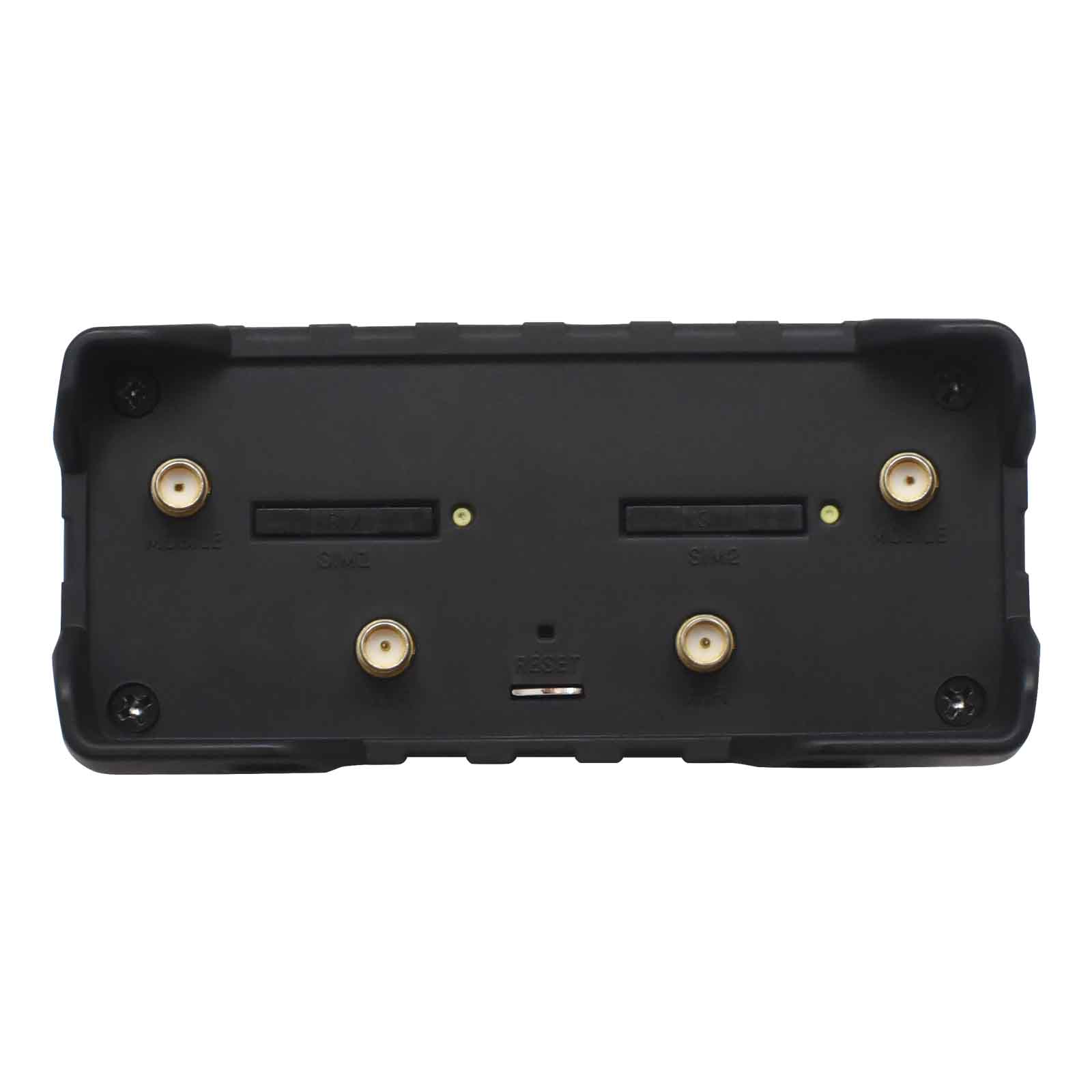

    Antennas
    2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
    Reset
    Reboot/User default reset/Factory reset button
    PHYSICAL SPECIFICATION
    Casing material
    Aluminium housing, plastic panels
    Dimensions (W x H x D)
    110 x 50 x 100 mm
    Weight
    287 g
    Mounting options
    DIN rail (can be mounted on two sides), flat surface placement
    OPERATING ENVIRONMENT
    Operating temperature
    -40 °C to 75 °C
    Operating humidity
    10% to 90% non-condensing
    Ingress Protection Rating
    IP30
    REGULATORY & TYPE APPROVALS
    Regulatory
    CE/RED, UKCA, CB
    EMI IMMUNITY
    Standards
    EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
    ESD
    EN 61000-4-2:2009
    Radiated Immunity
    EN 61000-4-3:2020
    EFT
    EN 61000-4-4:2012
    Surge Immunity (AC Mains Power Port)
    EN 61000-4-5:2014+A1:2017
    CS
    EN 61000-4-6:2014
    DIP
    EN IEC 61000-4-11:2020
    RF
    Standards
    EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1
    SAFETY
    Standards
    EN IEC 62311:2020 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020
