    Teltonika TCR100 router 4G LTE WiFi
    1 025,70 zł
    833,90 zł netto

    Dostępność: dostępne
    Producent: Teltonika
    szt:



    Najtańsza dostawa: (pokaż wszystkie)
  • DHL (przedpłata) - 18,00 zł

  • Teltonika TCR100 to elegancki router mobilny przeznaczony do zastosowań domowych, wyposażony w Wi-Fi 802.11ac, intuicyjny interfejs RUTOS i funkcje bezpieczeństwa.

    Nowa seria urządzeń Teltonika TCR to seria zorientowanych na konsumenta routerów komórkowych i Ethernet przeznaczonych do zaawansowanych rozwiązań.

    Dzięki technologii 4G LTE-A można użyć TCR100 jako podstawowego lub zapasowego źródła łączności. Dwa interfejsy Ethernet i dwuzakresowe Wi-Fi umożliwiają łatwe łączenie wielu urządzeń. TCR100 posiada wskaźniki łączności oraz przyciski Wi-Fi i Wi-Fi Protected, które umożliwiają szybką i prostą konfigurację.

    Router zapewnia wysoką wydajność dla komunikacji komórkowej. Wyposażony jest w dwa porty Fast Ethernet 10/100 Mb/s, slot na kartę SIM oraz diody LED statusu mocy sygnału, które zapewniają łatwe zarządzanie siecią. Zewnętrzne złącza antenowe SMA umożliwiają podłączenie pożądanych anten i łatwe znalezienie najlepszej lokalizacji sygnału. W zestawie znajdują się dwie anteny Mobile i jedna WiFi.

    Urządzenie zapewnia bezpieczną i stabilną łączność internetową dla aplikacji przemysłowych z wykorzystaniem oprogramowania RutOS i funkcji bezpieczeństwa, takich jak OpenVPN, IPsec, Firewall, Hotspot, kontrola SMS i obsługa RMS.

    Zawartość zestawu:
    • Router TCR100
    • Zasilacz 18 W
    • 2x anteny LTE (obrotowe, męskie SMA)
    • Kabel Ethernet (1,5 m)
    • Zestaw adaptera SIM
    • QSG (Przewodnik szybkiego startu)
    • Ulotka RMS
    • Pudełko do pakowania
    Najważniejsze cechy:
    • 2x porty Fast Ethernet 10/100 Mb/s
    • 1x slot na kartę SIM
    • 2x wbudowane anteny WiFi dla 2,4 GHz i 1x antena WiFi 5 GHz
    • 2x zewnętrzne odkręcane anteny LTE (złącze SMA męskie)
    • 4G LTE-ADVANCED - LTE CAT6 umożliwia prędkość sieci komórkowej do 300 Mb/s z agregacją operatorów
    • Dwuzakresowe WiFi z częstotliwościami 2,4 GHz i 5 GHz
    • Wytrzymała obudowa z radiatorem zapewniającym wydajność cieplną
    • Zapora sieciowa i liczne usługi VPN, w tym OpenVPN, IPsec, PPTP, L2TP i DMVPN
    • Kompatybilność z systemem RMS umożliwiającym zdalny dostęp i usługi VPN na żądanie
    • Potężny system operacyjny RUTOS z intuicyjnym interfejsem użytkownika opartym na OpenWrt daje nieograniczone możliwości konfiguracji
    MOBILE
    Mobile module
    4G+ (LTE-A) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
    Status
    Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
    USSD
    Supports sending and reading Unstructured Supplementary Service Data messages
    Black/White list
    Operator black/white list
    Multiple PDN
    Possibility to use different PDNs for multiple network access and services
    Band management
    Band lock, Used band status display
    APN
    Auto APN
    Bridge mode
    Direct connection (bridge) between mobile ISP and device on LAN
    WIRELESS
    Wireless mode
    2.4 GHz (802.11 b/g/n, 2x2 MIMO), 5 GHz (802.11 ac, 1x1 MIMO), Access Point (AP), Station (STA)
    WiFi security
    WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
    ESSID
    ESSID stealth mode
    Wireless Hotspot
    Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden
    Wireless mesh/roaming
    Wireless mesh (802.11s), fast roaming (802.11r)
    ETHERNET
    WAN
    1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
    LAN
    1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
    NETWORK
    Routing
    Static routes, Dynamic routes
    Network protocols
    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
    Connection monitoring
    Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
    Firewall
    Port forwards, traffic rules, NAT rules, custom rules
    DHCP
    Static and dynamic IP allocation, DHCP Relay, Relayd
    QoS / Smart Queue Management (SQM)
    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
    DDNS
    Supported >25 service providers, others can be configured manually
    Network backup
    Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
    Load balancing
    Balance Internet traffic over multiple WAN connections
    SSHFS
    Possibility to mount remote file system via SSH protocol
    SECURITY
    Authetication
    Pre-shared key, digital certificates, X.509 certificates
    Firewall
    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
    Attack prevention
    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    VLAN
    Tag based VLAN separation
    Mobile quota control
    Custom data limits for SIM card
    WEB filter
    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
    Access control
    Flexible access control of TCP, UDP, ICMP packets, MAC address filter
    VPN
    OpenVPN
    Multiple clients and a server can run simultaneously, 12 encryption methods
    OpenVPN Encryption
    DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    IPSec
    IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
    GRE
    GRE tunnel
    PPTP, L2TP
    Client/Server instances can run simultaneously, L2TPv3 support
    Stunnel
    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
    DMVPN
    Method of building scalable IPsec VPNs
    SSTP
    SSTP client instance support
    ZeroTier
    ZeroTier VPN client support
    WireGuard
    WireGuard VPN client and server support
    MODBUS
    MODBUS TCP SLAVE
    ID filtering
    Respond to one ID in range [1;255] or any
    Allow remote access
    Allow access through WAN
    Custom registers
    MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
    MODBUS TCP MASTER
    Supported functions
    01, 02, 03, 04, 05, 06, 15, 16
    Supported data formats
    8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
    MQTT GATEWAY
    Gateway
    Allows sending commands and receiving data from MODBUS Master trough MQTT broker
    DNP3
    Supported modes
    TCP Master, DNP3 Outstation
    DATA TO SERVER
    Protocols
    HTTP(S), MQTT, Azure MQTT, Kinesis
    MONITORING & MANAGEMENT
    WEB UI
    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
    FOTA
    Firmware update from server, automatic notification
    SSH
    SSH (v1, v2)
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET
    Call
    Reboot, Status, Mobile data on/off, Output on/off
    TR-069
    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    MQTT
    MQTT Broker, MQTT publisher
    SNMP
    SNMP (v1, v2, v3), SNMP trap
    JSON-RPC
    Management API over HTTP/HTTPS
    MODBUS
    MODBUS TCP status/control
    RMS
    Teltonika Remote Management System (RMS)
    IoT PLATFORMS
    Clouds of things
    Allows monitoring of: Device data, Mobile data, Network info, Availability
    ThingWorx
    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
    Cumulocity
    Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
    Azure IoT Hub
    Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
    SYSTEM CHARACTERISTICS
    CPU
    QCA9531, MIPS 24kc, 650 MHz
    RAM
    128 MB, DDR2
    FLASH storage
    16 MB, SPI Flash
    FIRMWARE / CONFIGURATION
    WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA
    Update FW/configuration from server
    RMS
    Update FW/configuration for multiple devices at once
    Keep settings
    Update FW without losing current configuration
    POWER
    Connector
    4 pin industrial DC power socket
    Input voltage range
    9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
    Power consumption
    3.7 W average, 9.3 W max

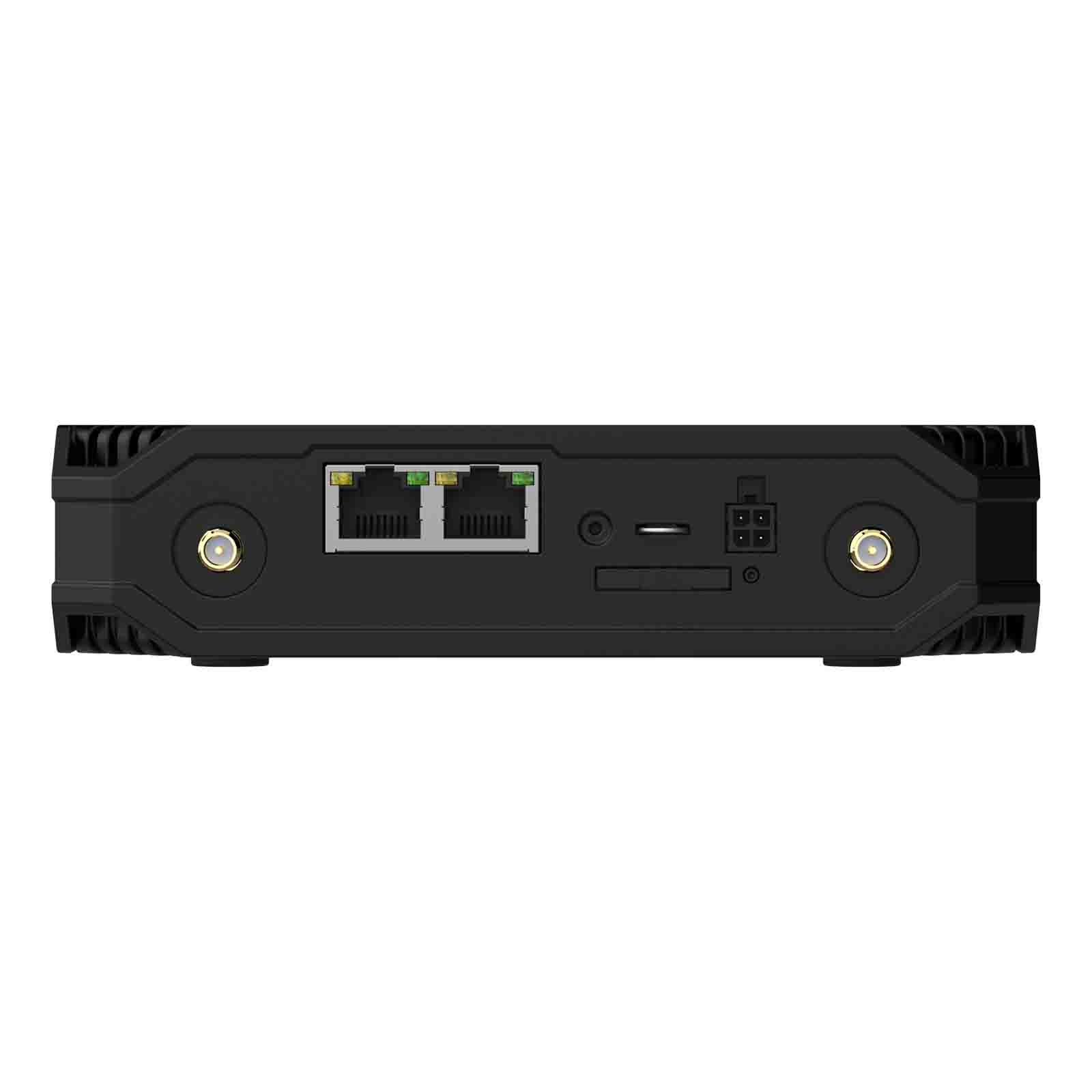

    PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
    Ethernet
    2 x RJ45 ports, 10/100 Mbps
    Status LEDs
    1 x Internet, 1 x WiFi, 3 x Mobile connection strength, 2 x Ethernet status
    SIM
    1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder (Embedded SIM variant available)
    Antenna
    2 x SMA for LTE, 2 x Internal for 2.4 GHz WiFi, 1 x Internal for 5 GHz WiFi
    Power
    1 x 4 pin DC connector
    WPS
    WPS activation button
    WiFi On/Off
    WiFi enable/disable button
    Reset
    Reboot/User default reset/Factory reset button
    PHYSICAL SPECIFICATION
    Casing material
    Plastic housing with aluminum screws and heatsink
    Dimensions (W x H x D)
    150 x 37 x 105 mm
    Weight
    376 g
    Mounting options
    Flat surface placement
    OPERATING ENVIRONMENT
    Operating temperature
    -40 C to 75 C
    Operating humidity
    10 % to 90 % non-condensing

    Galeria produktu:
