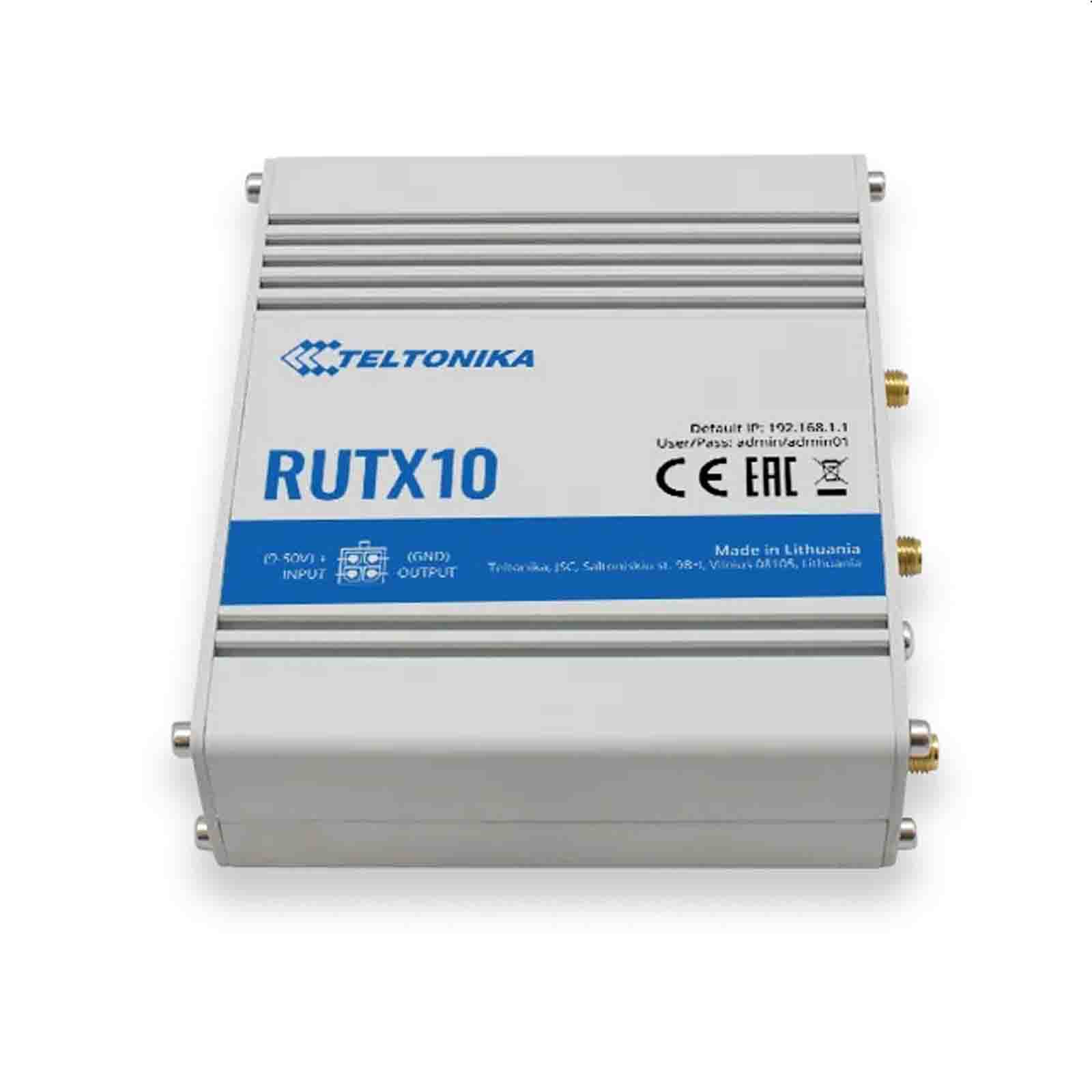

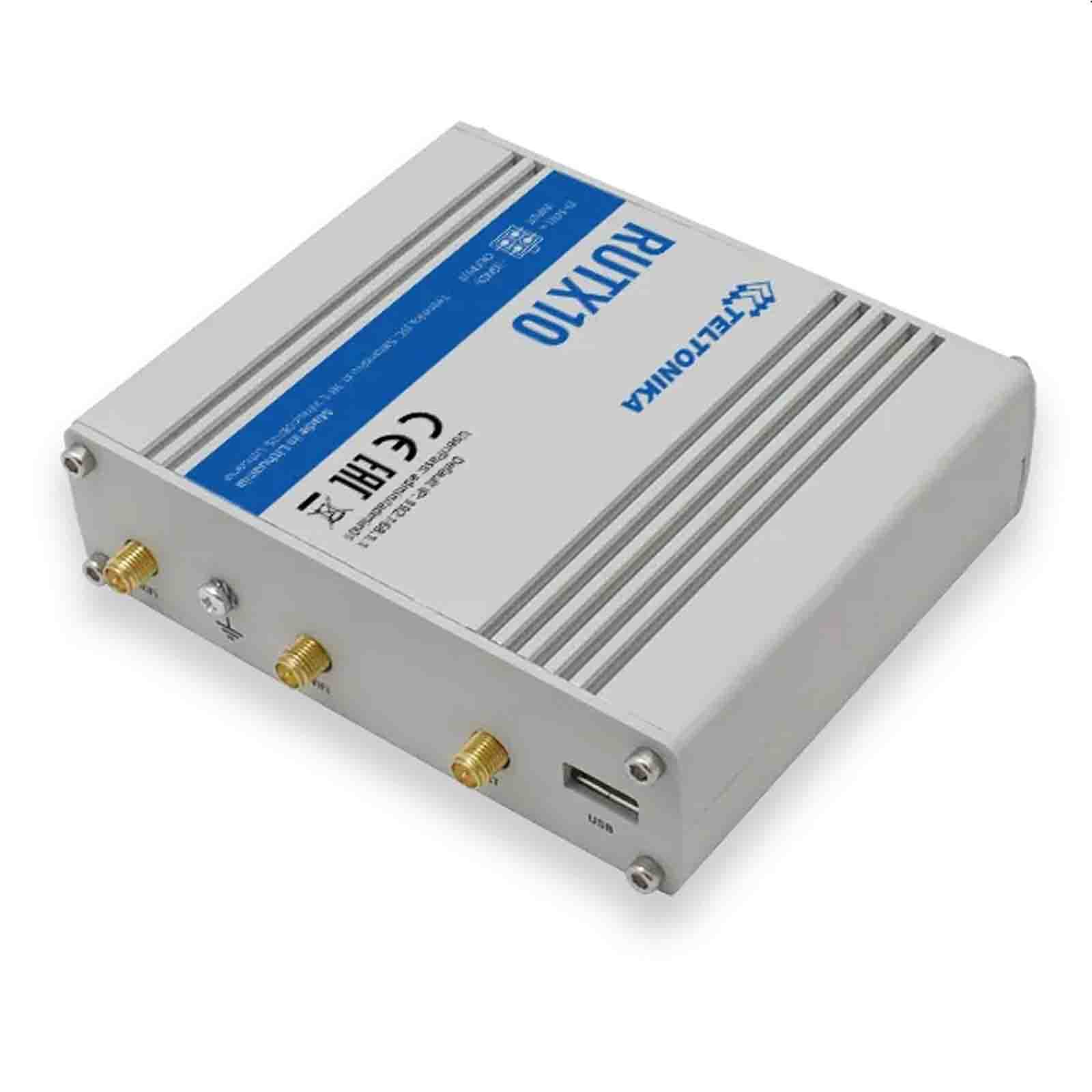

Teltonika RUTX10 (RUTX10000000) to solidny i wydajny router przemysłowy, wyposażony w dwuzakresowe WiFi w standardzie 802.11ac oraz moduł Bluetooth LE. Router zapewnia wysoką prędkość transmisji danych i bezproblemowe przeglądanie Internetu. RUTX10 posiada wszystkie najnowsze funkcje bezpieczeństwa i możliwość zdalnego monitorowania i kontrolowania wykorzystywanych danych w biurze.

RUTX10 posiada czterordzeniowy procesor ARM Cortex A7 o taktowaniu 717MHz i 256 MB pamięci RAM, a także 4 porty Gigabit Ethernet. Potężny sprzęt w połączeniu z zaawansowanym oprogramowaniem RutOS i funkcjami bezpieczeństwa sprawia, że ​​router jest szybki, bezpieczny i niezawodny w branży przemysłowej.

Router posiada zaawansowany system RutOS oparty na OpenWrt, moduł Bluetooth LE, a także obsługuje Firewall, funkcję VPN oraz RMS. Urządzenie zamknięte jest w aluminiowej obudowie. Zasilacz w zestawie.
Najważniejsze cechy:

ETHERNET
WAN	1x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
WIRELESS
Wireless mode	802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security	WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID	ESSID stealth mode
BLUETOOTH
Bluetooth LE	Bluetooth low energy (LE) for short range communication
NETWORK
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP (planed), SSL v3, TLS, ARP, VRRP (planed), PPP, PPPoE, UPNP, SSH, SNMP, DHCP, Telnet (optional), MQTT
VoIP passthrough support	H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring	Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forwards, traffic rules, custom rules
DHCP	Static and dynamic IP allocation, DHCP Relay, Relayd
QoS	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
Network backup	VRRP (planed)
SSHFS (optional)	Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication	Pre-shared key, digital certificates, X.509 certificates
Firewall	Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port based and tag based VLAN separation
WEB filter	Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control	Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN	Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec	IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE	GRE tunnel
PPTP, L2TP	Client/Server services can run simultaneously
Stunnel (planed)	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN	Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI	HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
JSON-RPC	Management API over HTTP/HTTPS
Modbus (planed)	Modbus TCP status/control, master and slave modes
RMS	Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH memory	256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment provided (planed)
USB
Data rate	USB 2.0
Applications	Samba share (planed), custom scripts (planed)
External devices	Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats	FAT, FAT32, NTFS
INPUT/OUTPUT
Input	1 x Digital Input
Output	1 x Digital Output
Events	SMS, Email, RMS
POWER
Connector	4 pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption	11 W Max

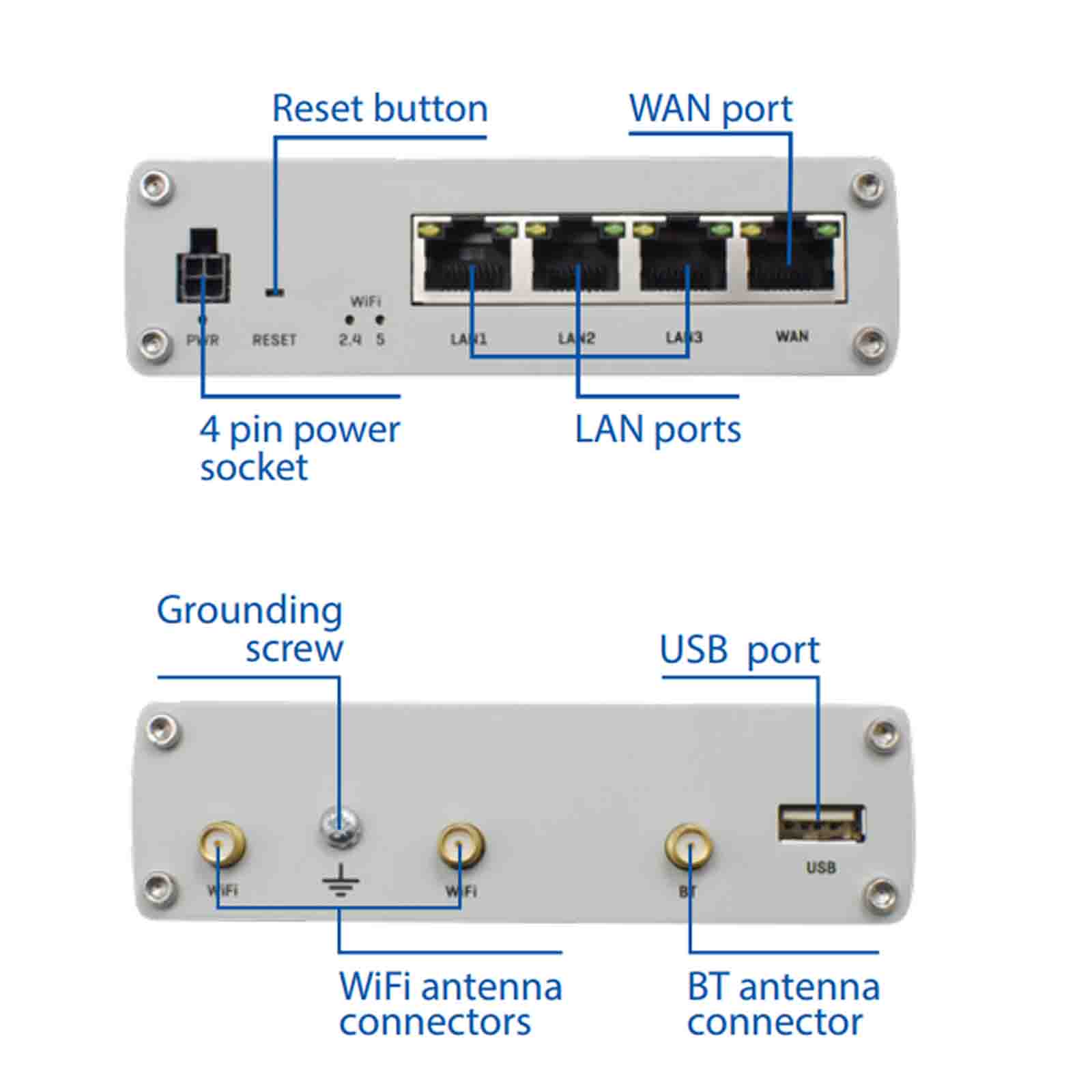

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
I/Os	1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs	8 x LAN status LEDs, 1 x Power LED
Power	4 pin DC connector
Antennas	2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth
USB	USB A port for external devices
Reset	Factory reset button
PHYSICAL SPECIFICATION
Casing material	Full aluminium housing
Dimensions	115 mm x 95 mm x 32 mm (H x W x D)
Weight	357 g
Mounting options	DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40 C to 75 C
Operating humidity	10 % to 90 % non-condensing
Ingress Protection Rating	IP30
