PowerWalker VI 850 SH IEC to UPS Line-Interactive. Seria PowerWalker VI SH oferuje kompleksową ochronę i wysoką gęstość mocy w niewielkiej i ekonomicznej obudowie typowej dla zasilaczy UPS typu Line-Interactive. Wyposażone są w stabilizator napięcia; dzięki temu zasilacz ten nieprzerwanie dostarcza czyste i stabilne zasilanie do podłączonych urządzeń i doskonale nadaje się do zastosowań domowych oraz w małych biurach.

PowerWalker VI 850 SH IEC
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	850VA / 480W
Output Power Factor	0.56
Input
Input Voltage Range	170-280 VAC ±7%
Frequency Range	50Hz or 60Hz (self-adaptive)
Output
Waveform	Simulated Sine Wave
VA	850
Nominal Output Voltage	230 VAC
Frequency (Battery Mode)	±1Hz
Output Power Factor	0.56

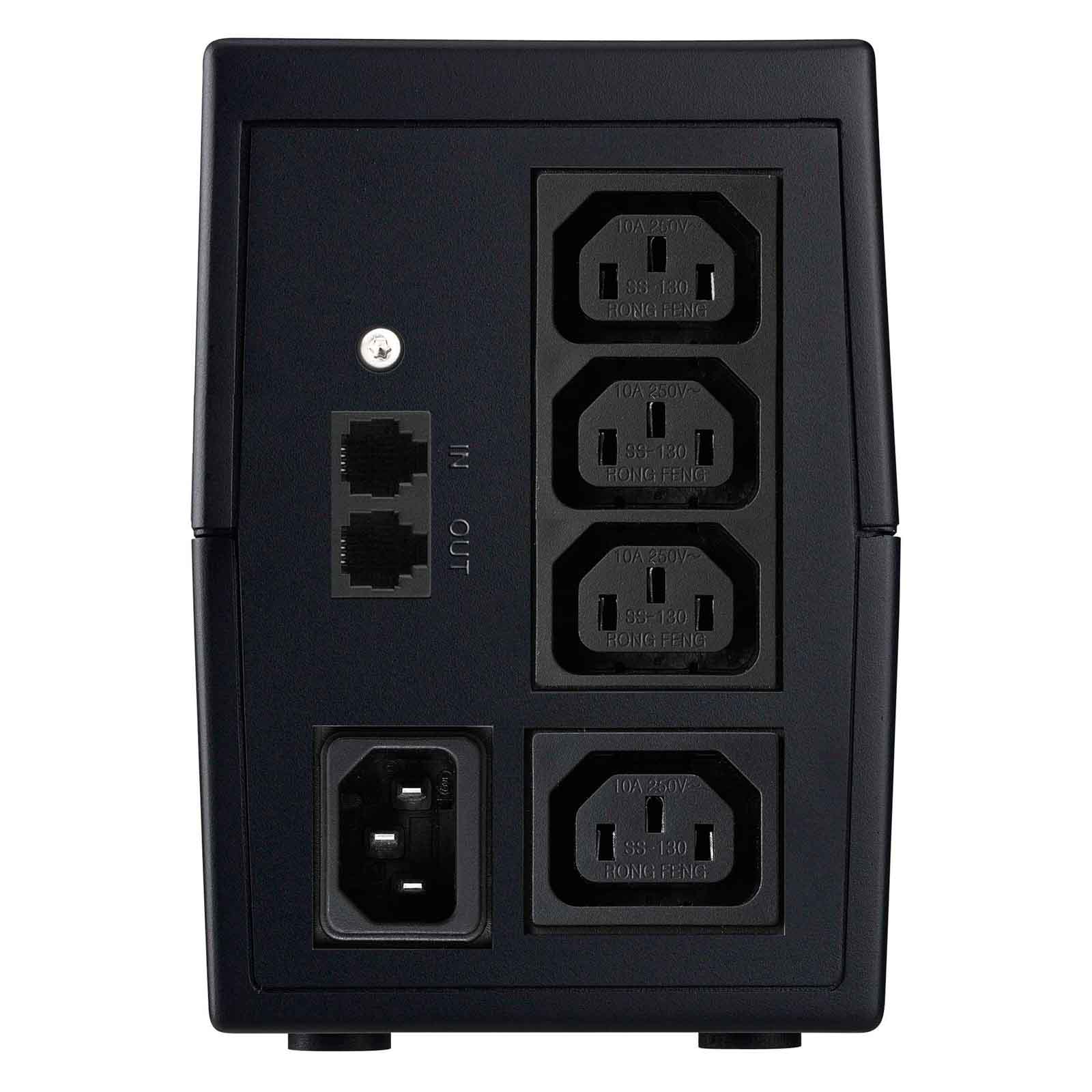

Input & Output Connectors
Input Connector	C14
IEC C13	4
Technical Details
LINE Mode Efficiency [%] (Full Load)	95.0
Battery Mode Efficiency [%] (Full Load)	60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	4-8ms
Data Line Protection	RJ-11 Port
Additional Features	Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VI-SY-333
Batteries and Autonomy
Batteries	1x 12.0V/9.0Ah
DC Voltage	1x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	0.1
Half Load Backup Time [min]	6.0
Charger	1.2A
Recharge Time	4h to 90%
Communication
Communication	USB Type B – for Monitoring Software
Software	WinPower
Management and Environment
Software	WinPower
Communication	USB Type B – for Monitoring Software
Noise Level	< 30dB
Fan Logic	No fan
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
Logistics
Outer Carton Height [mm]	250
Outer Carton Width [mm]	380
Outer Carton Depth [mm]	598
Package Height [mm]	223
Package Width [mm]	140
Package Depth [mm]	330
Package Weight [kg]	5.5
Product Height [mm]	143
Product Width [mm]	100
Product Depth [mm]	290
Product Weight [kg]	5.0
Package Content	Manual, USB Cable, IEC Cable, UPS
Manual Languages	DE, SE, DK, FI, NO, RU, PL, FR, PT, CZ, EN
EAN	4260074975864
Product Dimensions (DxWxH) [mm]	290 x 100 x 143 mm
Package Dimensions (DxWxH) [mm]	330 x 140 x 223 mm
Outer Carton Dimensions (DxWxH)	598 x 380 x 250 mm
Pcs. per Outer Carton	4
Pcs. per Layer	16
Pcs. per Pallet [Oversized]	128
